STAGES

Over 360,000 Sq. Ft. of Sound Stages

With 29 sound stages ranging from 5,500-18,775 sq. ft., we’re capable of handling a number of large projects. In addition, we can accommodate multiple sets on any of our huge stages to make set moves quick and seamless. We also offer several audience rated stages, which are perfect for your next sitcom, game show or talk show hit. No matter what you require for your project, The Studios at Paramount has a stage that will make filming easier both on the production process and on your budget.

Sound Stage Guide

STAGE	AREA	LENGTH	WIDTH	GRID HEIGHT

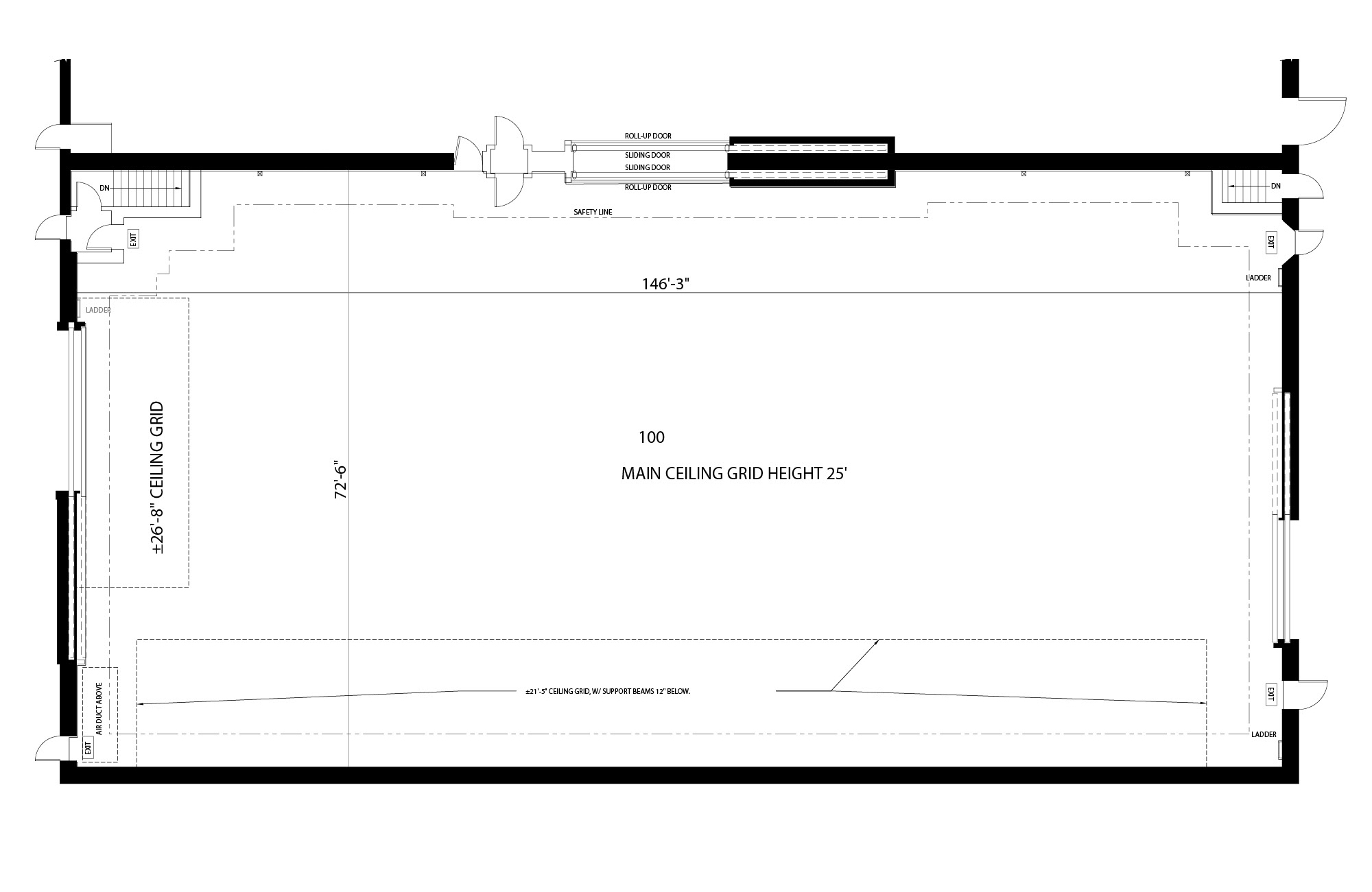

Stage 1	10,568 SQ FT	146'	73'	26'
	Floorplan	Specifications Dimensions • 146′ L x 73′ W • 10,568 Sq Ft • 26′ Grid Height • 21′ Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 3,000 LBS Concentrated on Min. 12″ Area	Power • 7,200A HVAC • 100 Tons Special Features • Audience Rated • Connecting Door to Stage 2	Downloads Stage Specs & CAD

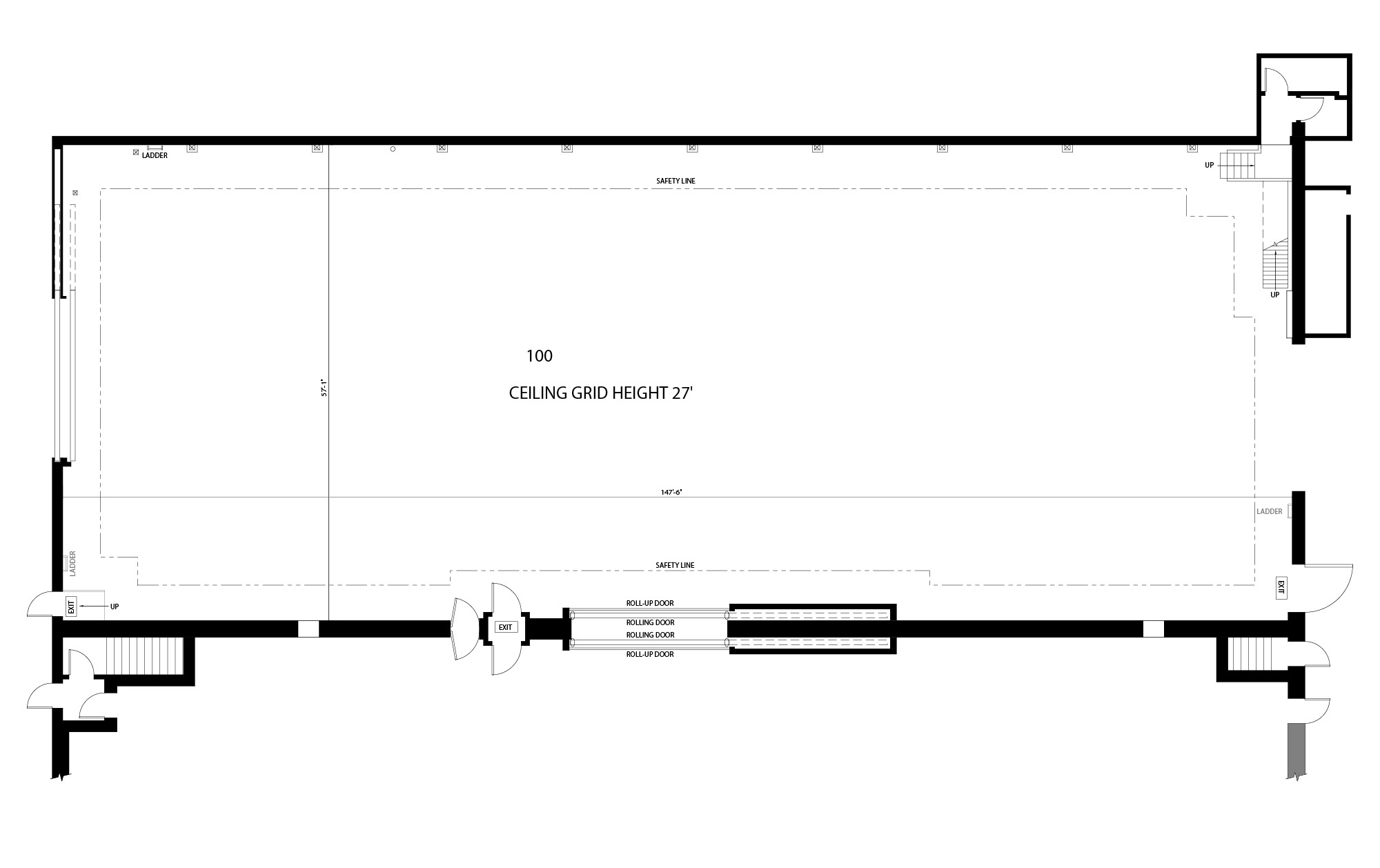

Stage 2	8,436 SQ FT	148'	57'	27'
	Floorplan	Specifications Dimensions • 148′ L x 57′ W • 8,436 Sq Ft • 27′ Grid Height • 19′ Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 6,000A HVAC • 80 Tons Special Features • Connecting Door to Stage 1	Downloads Stage Specs & CAD

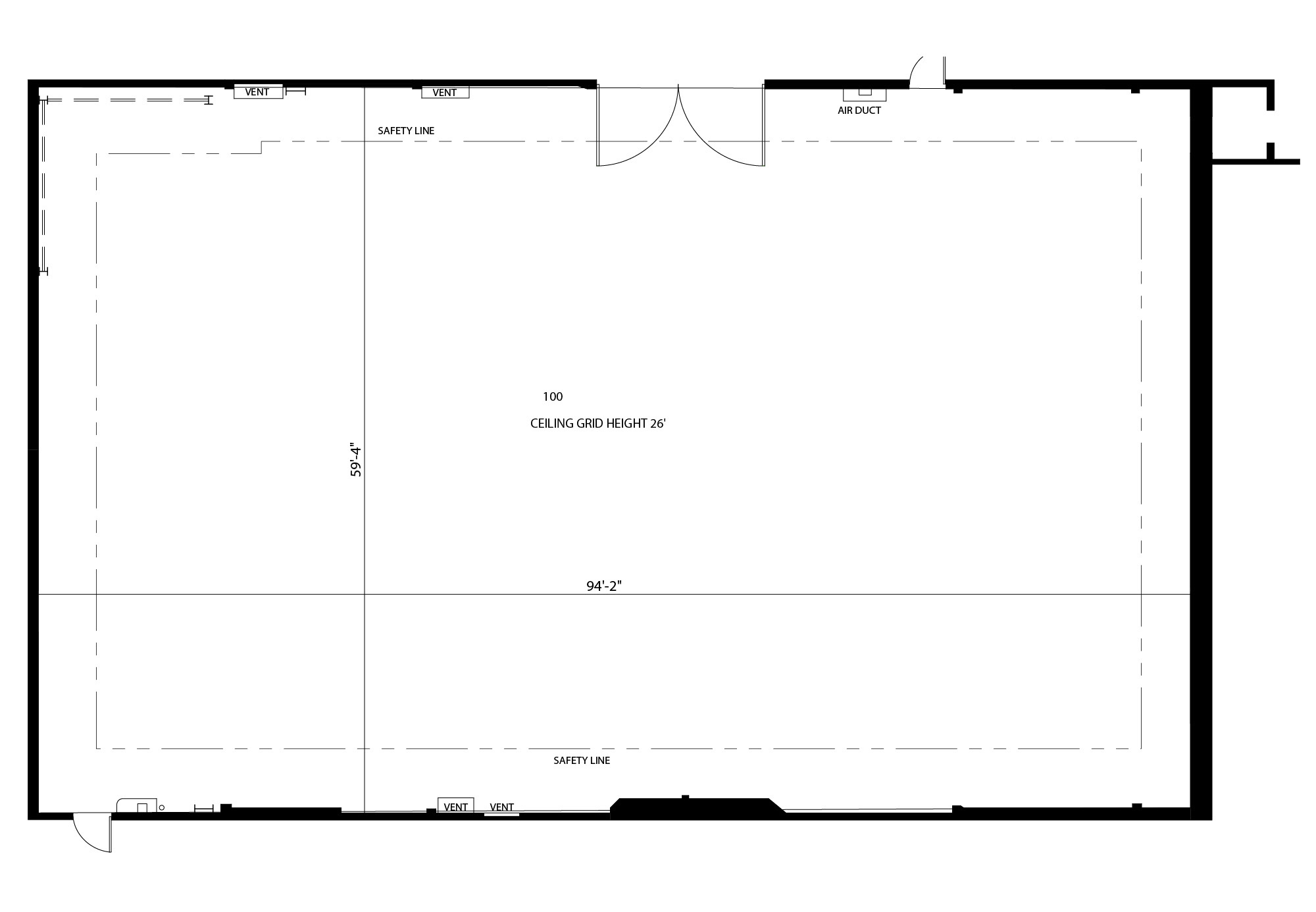

Stage 3	5,546 SQ FT	94'	59'	25'
	Floorplan	Specifications Dimensions • 94′ L x 59′ W • 5,546 Sq Ft • 25′ Grid Height • 19′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,300 LBS Concentrated on Min. 12″ Area	Power • 2,400A HVAC • 60 Tons	Downloads Stage Specs & CAD

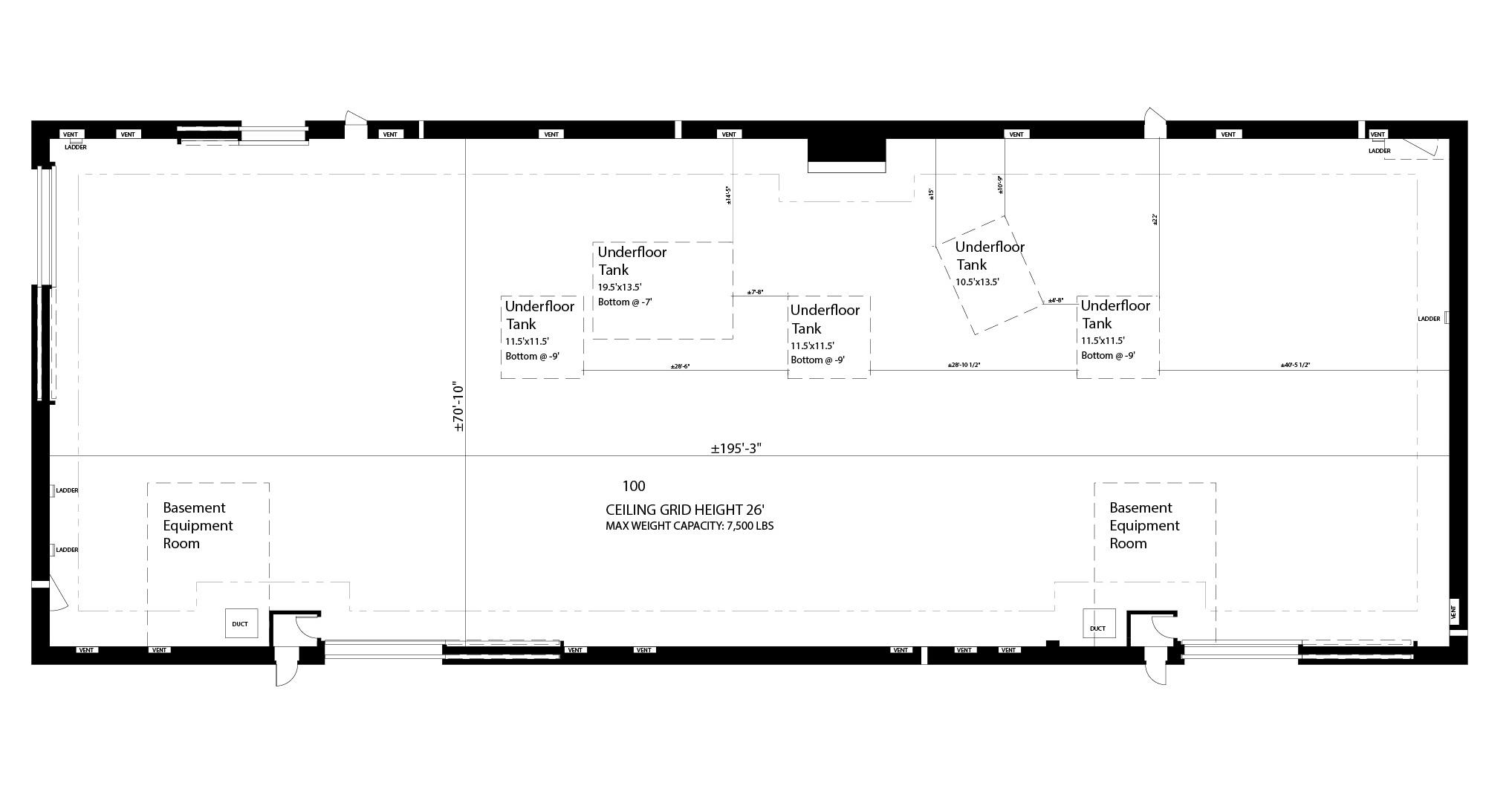

Stage 4	13,845 SQ FT	195'	71'	26'
	Floorplan	Specifications Dimensions • 195′ L x 71′ W • 13,845 Sq Ft • 26′ Grid Height • 26′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 4,800A HVAC • 100 Tons Special Features • 4 Pits	Downloads Stage Specs & CAD

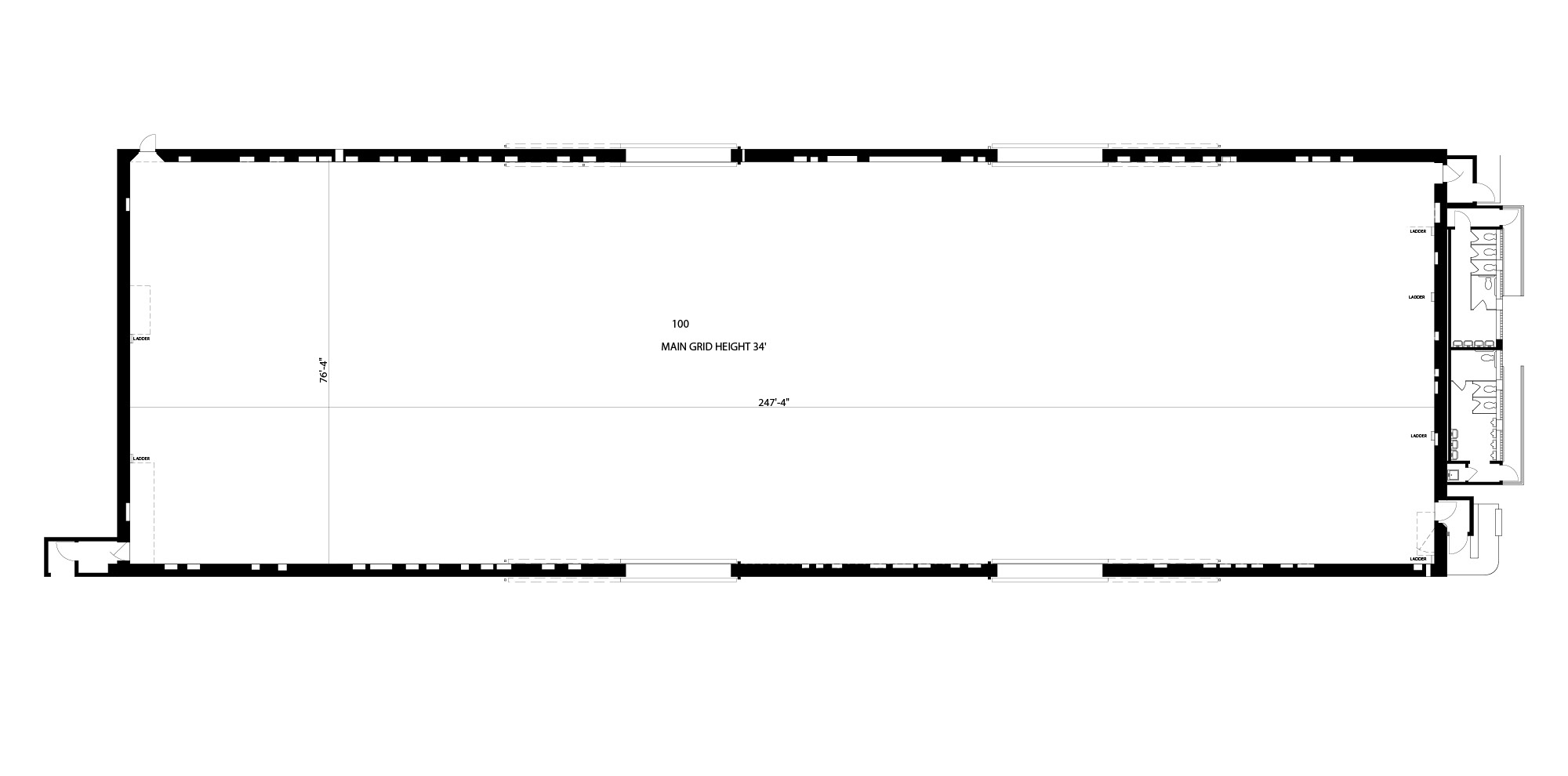

Stage 5	18,772 SQ FT	247'	76'	34'
	Floorplan	Specifications Dimensions • 247′ L x 76′ W • 18,772 Sq Ft • 34′ Grid Height • 28′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 4,800A HVAC • 120 Tons Special Features • Basement	Downloads Stage Specs & CAD

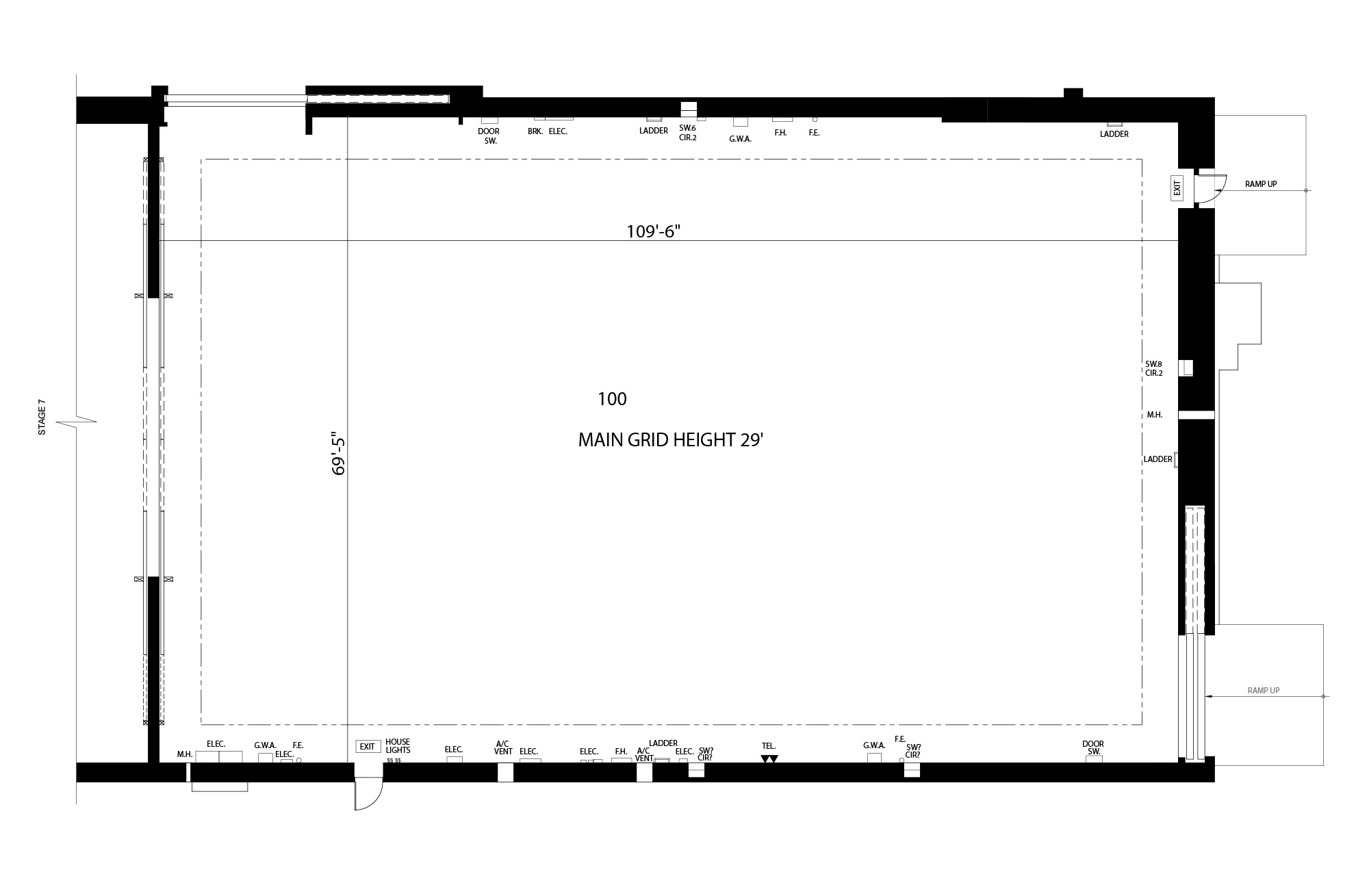

Stage 6	7,521 SQ FT	109'	69'	30'
	Floorplan	Specifications Dimensions • 109′ L x 69′ W • 7,521 Sq Ft • 30′ Grid Height • 28′ Door Height Floor Weight Capacity • 45 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area	Power • 4,800A HVAC • 50 Tons Special Features • Connecting Door to Stage 7	Downloads Stage Specs & CAD

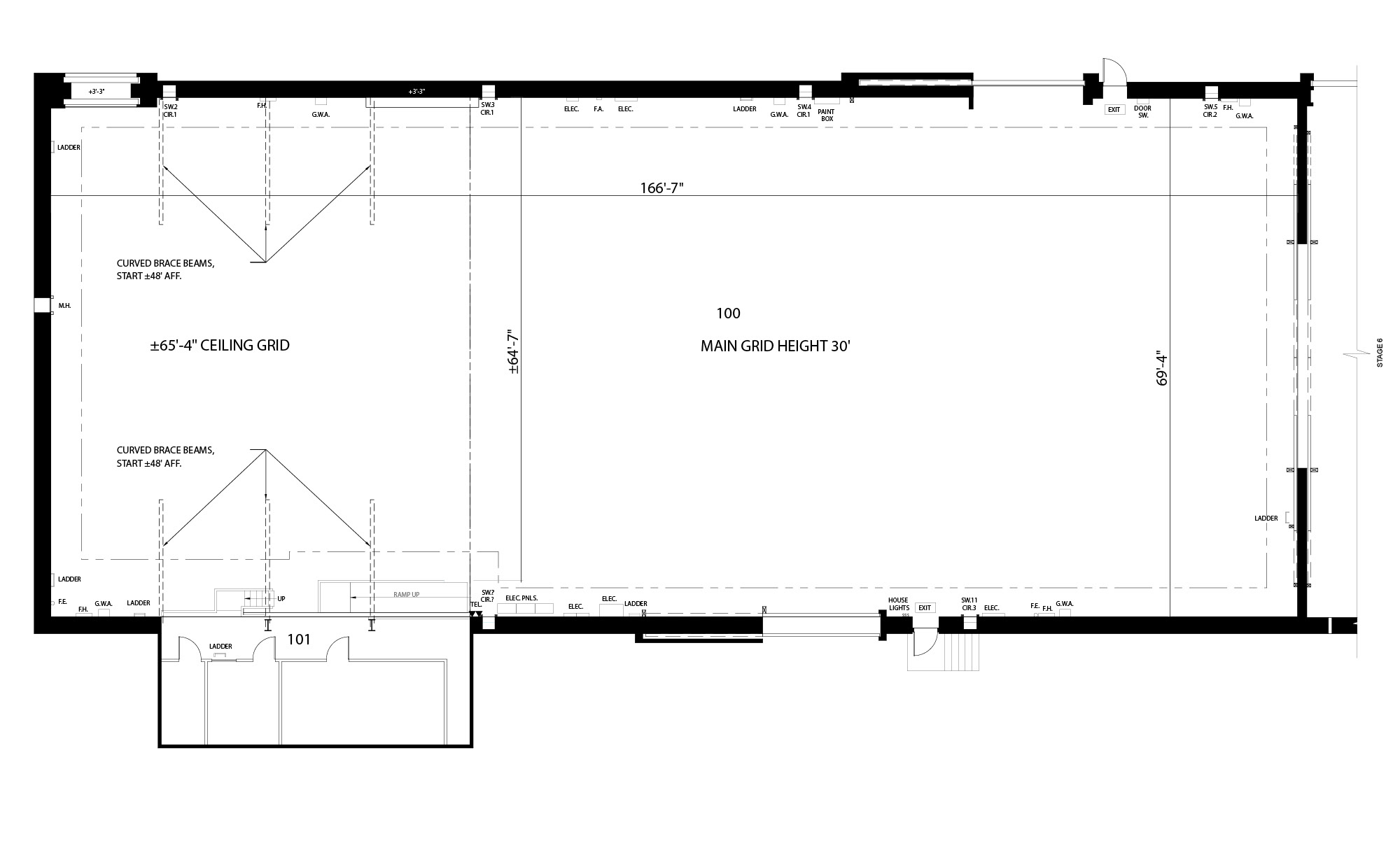

Stage 7	11,523 SQ FT	167'	69'	30'/65'
	Floorplan	Specifications Dimensions • 167′ L x 69′ W • 11,523 Sq Ft • 30′/65' Grid Height • 20' & 28′10" Door Height Floor Weight Capacity • 50 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area	Power • 7,200A HVAC • 50 Tons Special Features • Connecting Door to Stage 6	Downloads Stage Specs & CAD

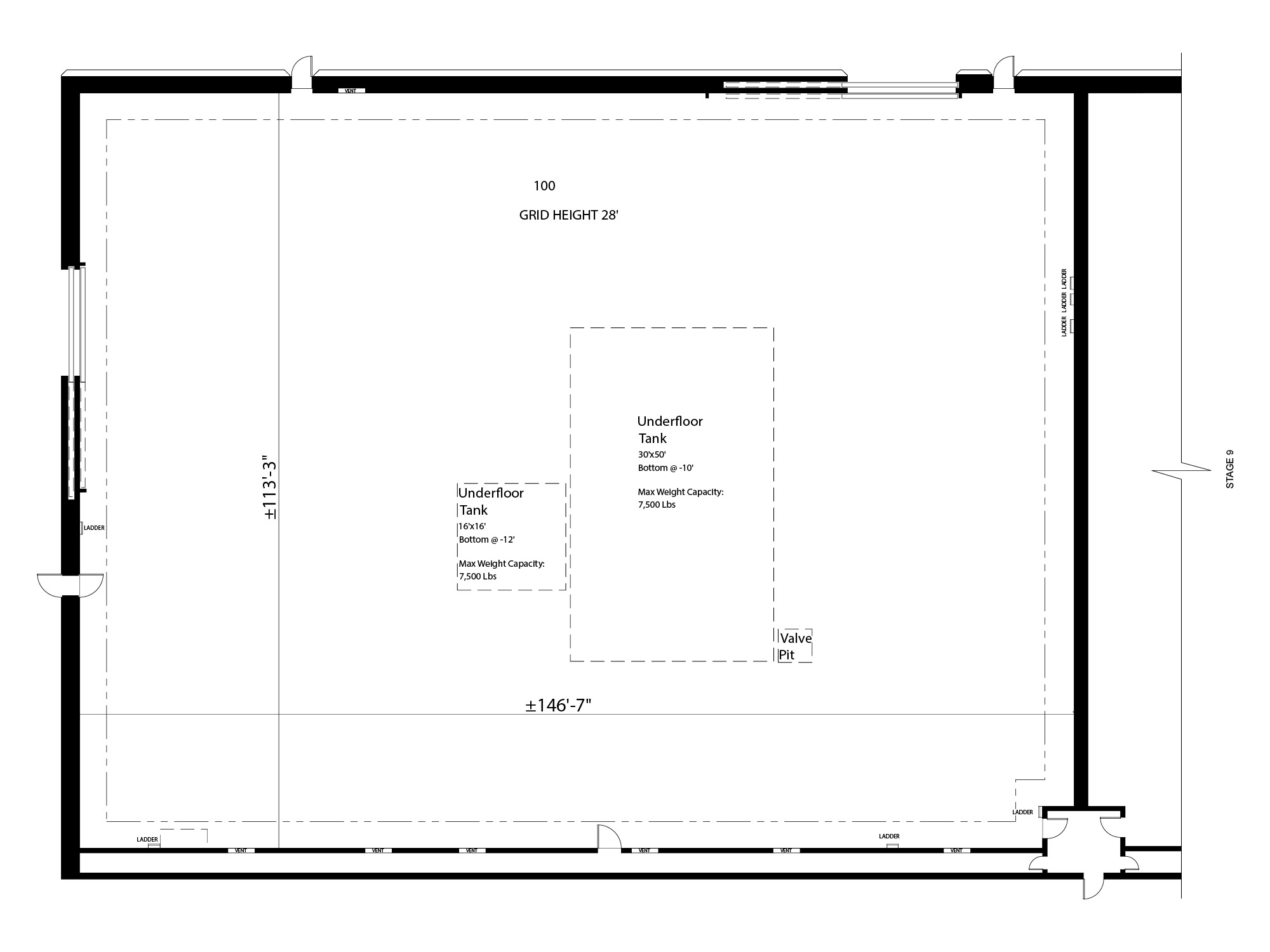

Stage 8	16,611 SQ FT	147'	113'	30'
	Floorplan	Specifications Dimensions • 147′ L x 113′ W • 16,611 Sq Ft • 30′ Grid Height • 26′10" Door Height Floor Weight Capacity • 175 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 200 Tons Special Features • 2 Pits	Downloads Stage Specs & CAD

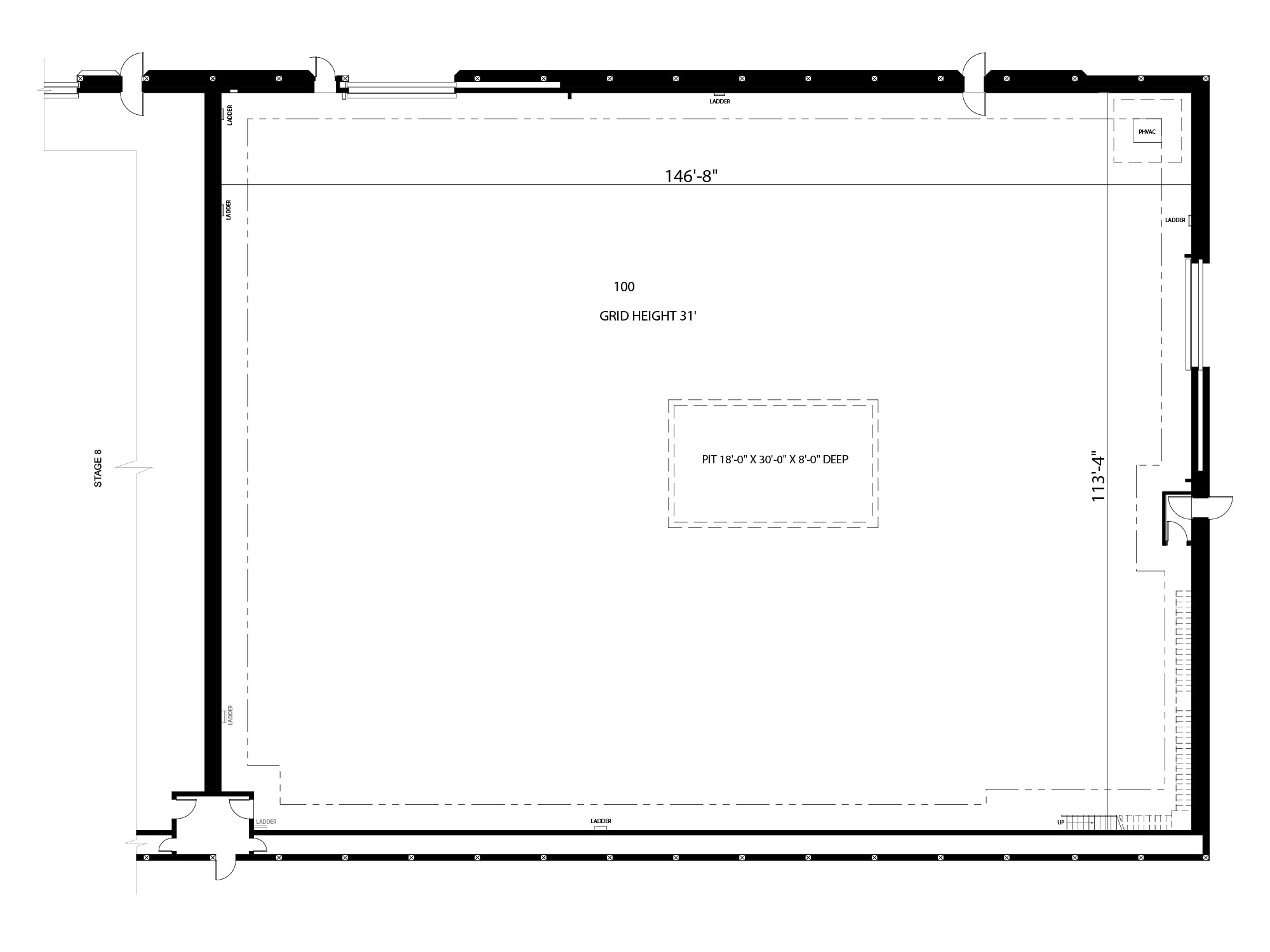

Stage 9	16,611 SQ FT	147'	113'	30'
	Floorplan	Specifications Dimensions • 147′ L x 113′ W • 16,611 Sq Ft • 30′ Grid Height • 26′10" Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 200 Tons Special Features • 1 Pit	Downloads Stage Specs & CAD

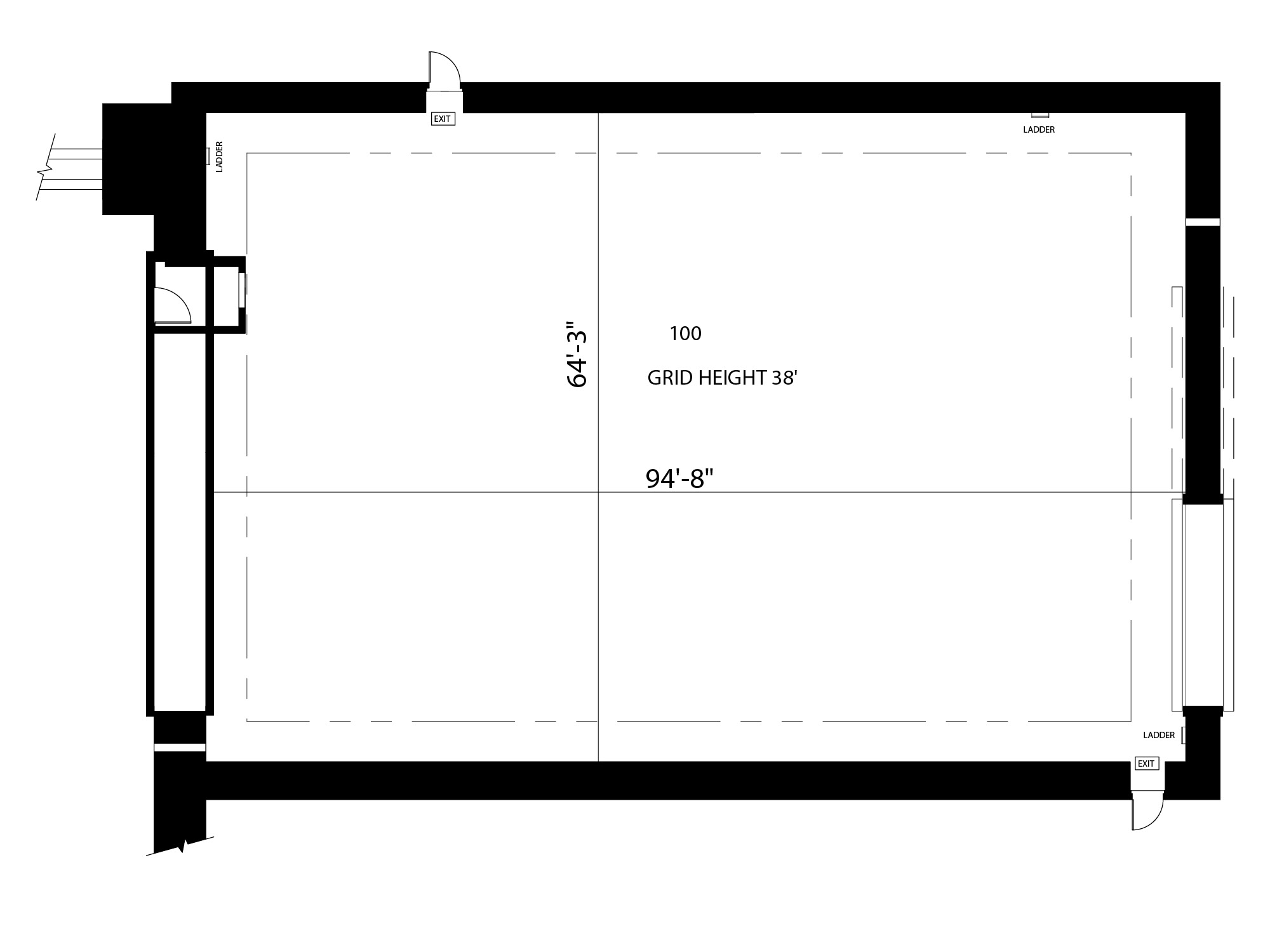

Stage 11	6,080 SQ FT	95'	64'	38'
	Floorplan	Specifications Dimensions • 95′ L x 64′ W • 6,080 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area	Power • 2,400A HVAC • 85 Tons Special Features • Connecting Door to Stage 14	Downloads Stage Specs & CAD

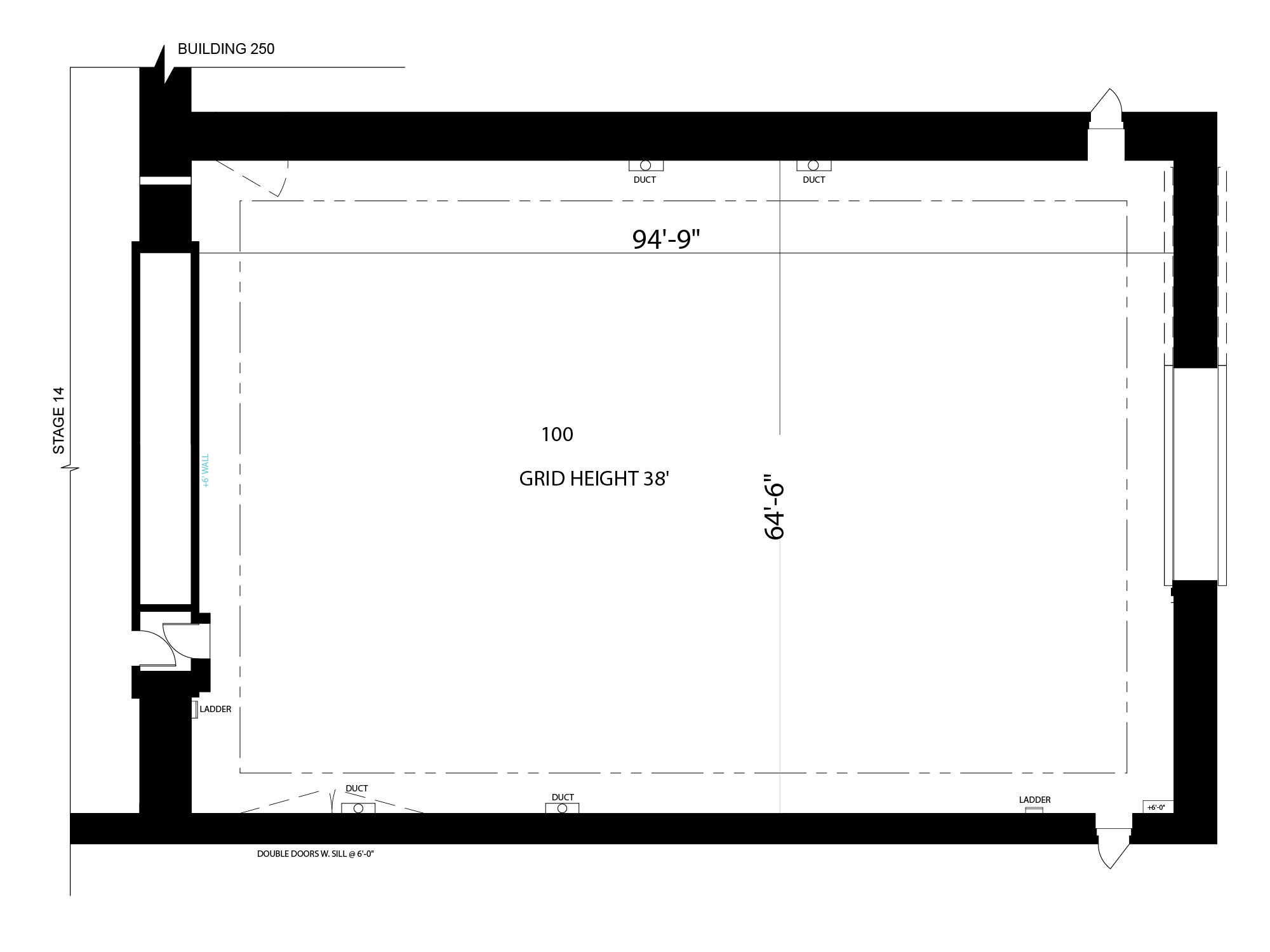

Stage 12	6,080 SQ FT	95'	64'	38'
	Floorplan	Specifications Dimensions • 95′ L x 64′ W • 6,080 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 175 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area	Power • 2,400A HVAC • 85 Tons Special Features • Connecting Door to Stage 14	Downloads Stage Specs & CAD

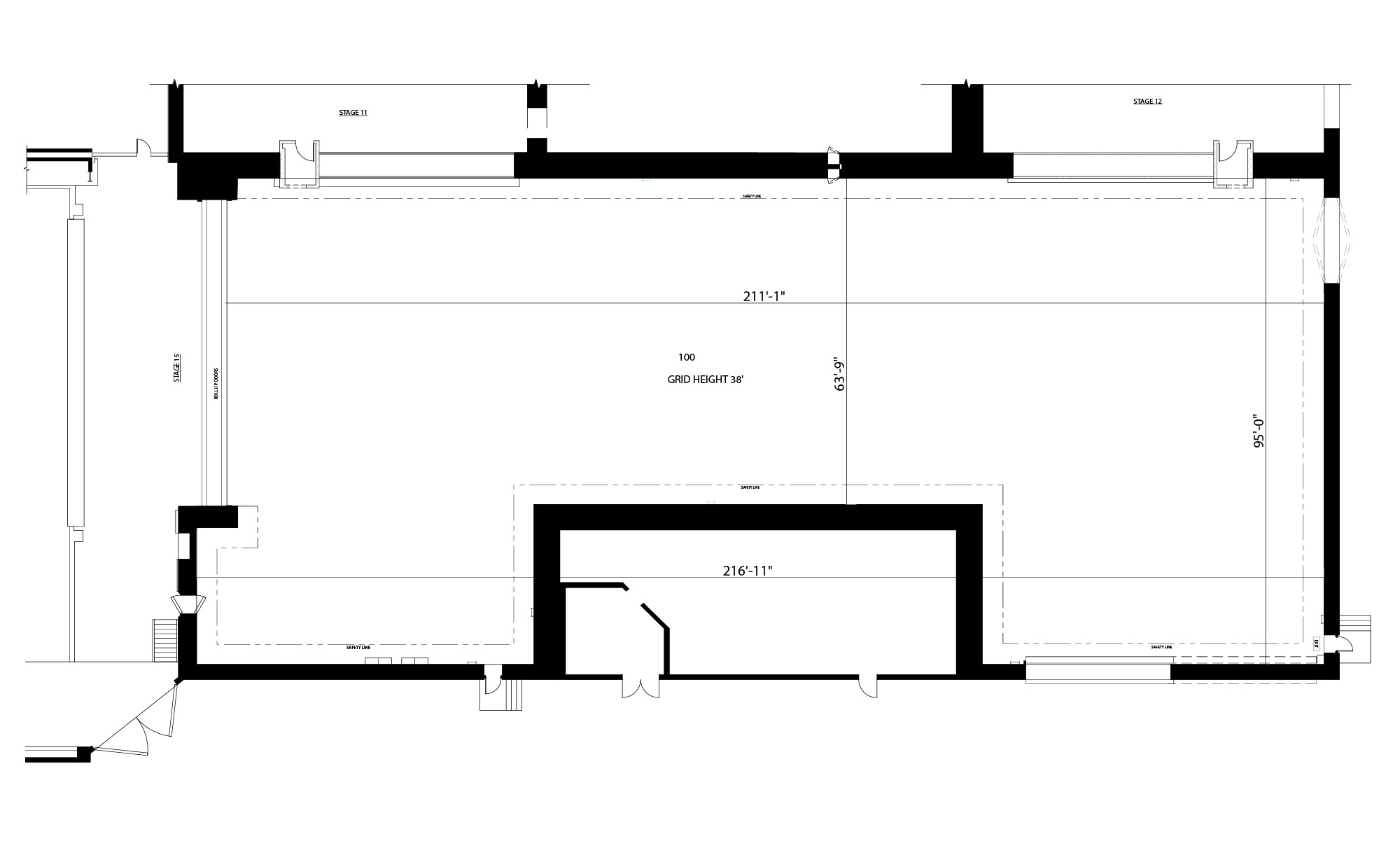

Stage 14	17,328 SQ FT	217'	95'/64'	38'
	Floorplan	Specifications Dimensions • 217′ L x 95'/64′ W • 17,328 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area	Power • 9,600A HVAC • 250 Tons Special Features • Connecting Doors to Stages 11,12,15	Downloads Stage Specs & CAD

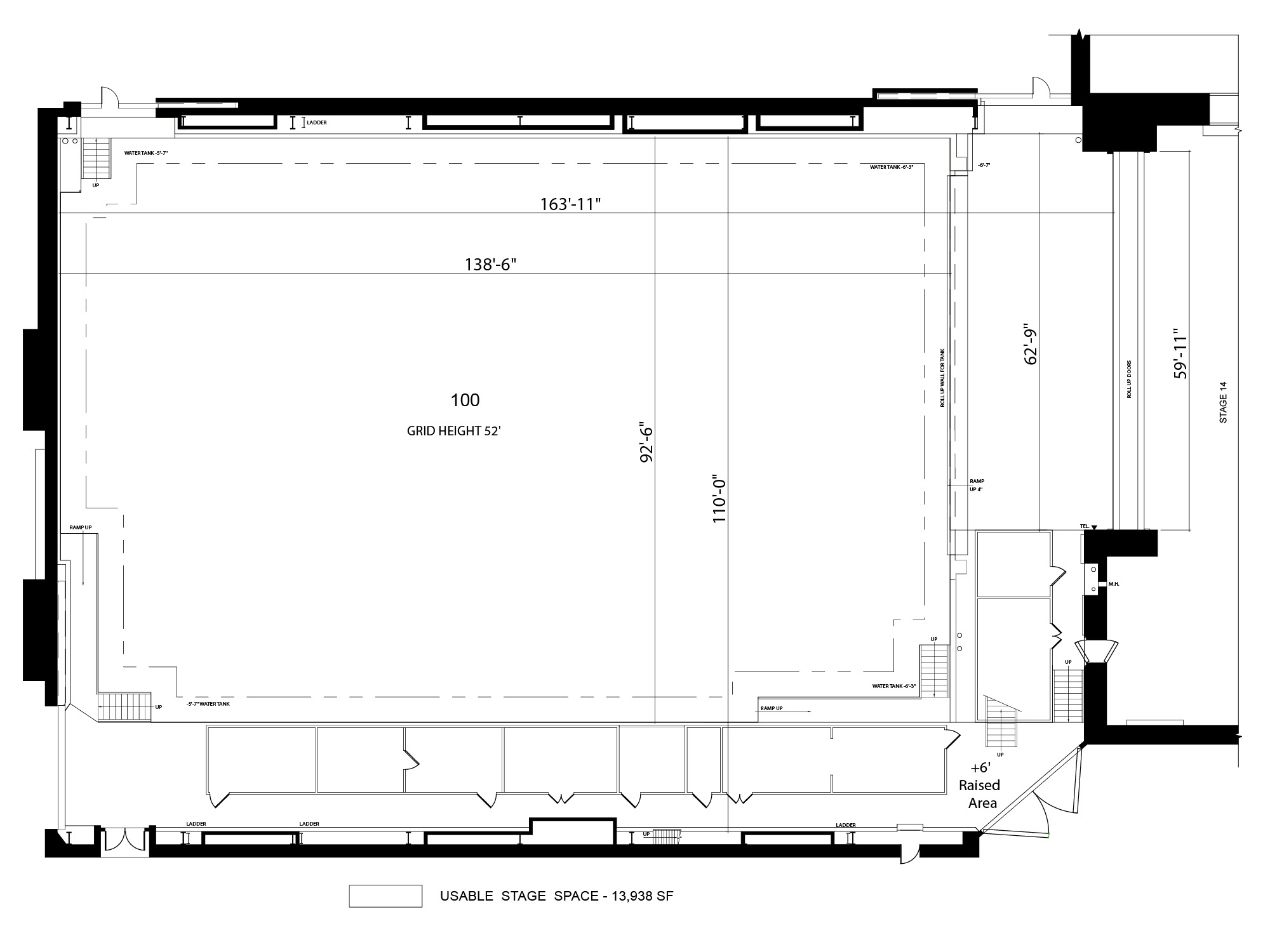

Stage 15	18,040 SQ FT	164'	110'	56'
	Floorplan	Specifications Dimensions • 164′ L x 110′ W • 17,328 Sq Ft • 56′ Grid Height • 43' Door Height Floor Weight Capacity • 350 PSF Uniform Floor Distribution • 3,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 250 Tons Special Features • Connecting Doors to Stage 14 • Gold Rooms • Water Tank	Downloads Stage Specs & CAD

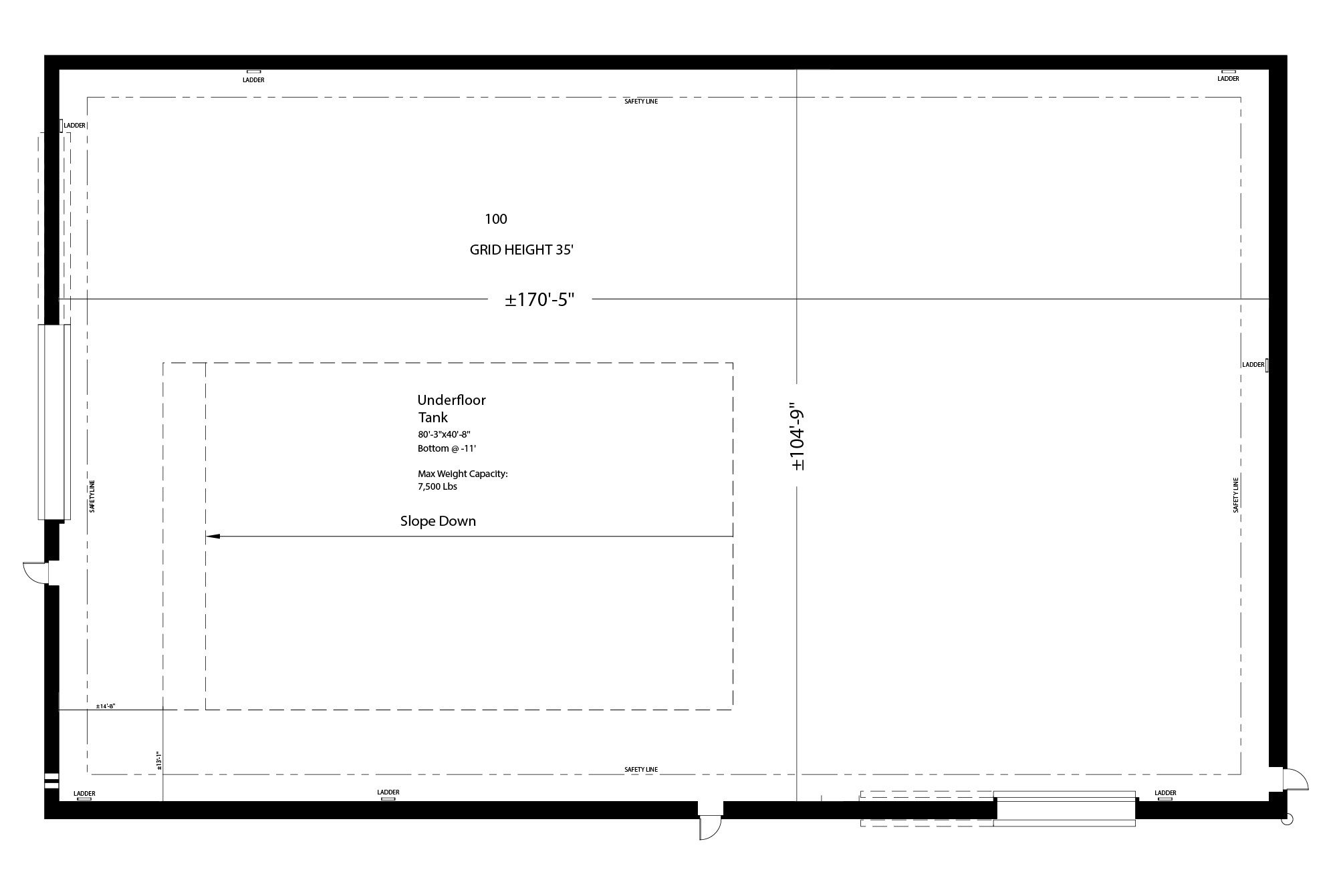

Stage 16	17,850 SQ FT	170'	105'	40'
	Floorplan	Specifications Dimensions • 170′ L x 105′ W • 17,328 Sq Ft • 40′ Grid Height • 28' Door Height Floor Weight Capacity • 325 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 80 Tons Special Features • Sloping Pit (5' to 12')	Downloads Stage Specs & CAD

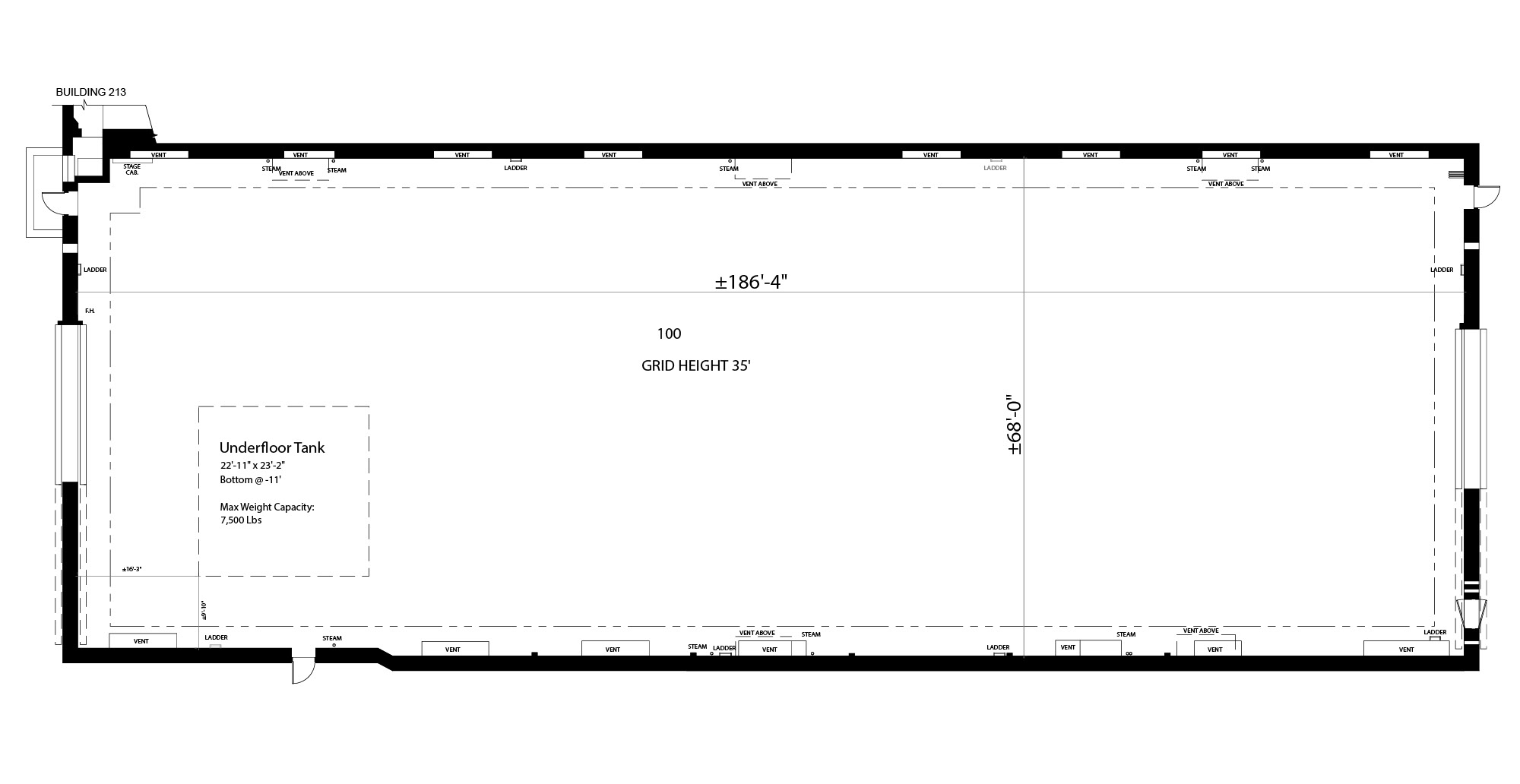

Stage 17	12,648 SQ FT	186'	68'	35'
	Floorplan	Specifications Dimensions • 186′ L x 68′ W • 12,648 Sq Ft • 35′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,500 LBS Concentrated on Min. 12″ Area	Power • 7,200A HVAC • 170 Tons Special Features • Pit	Downloads Stage Specs & CAD

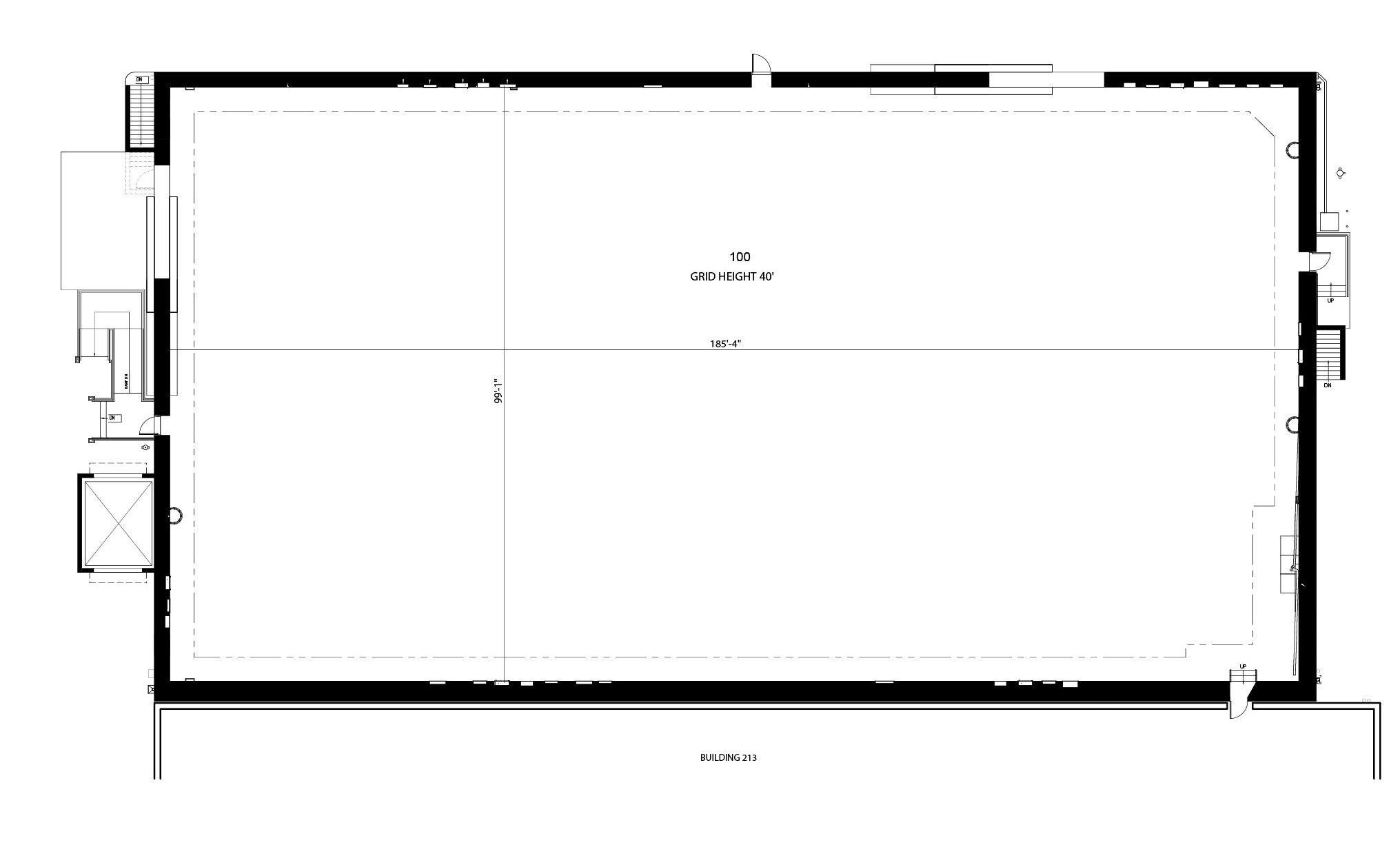

Stage 18	18,315 SQ FT	185'	99'	40'
	Floorplan	Specifications Dimensions • 185′ L x 99′ W • 18,315 Sq Ft • 40′ Grid Height • 28' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area	Power • 9,600A HVAC • 270 Tons Special Features • Audience Rated • Basement	Downloads Stage Specs & CAD

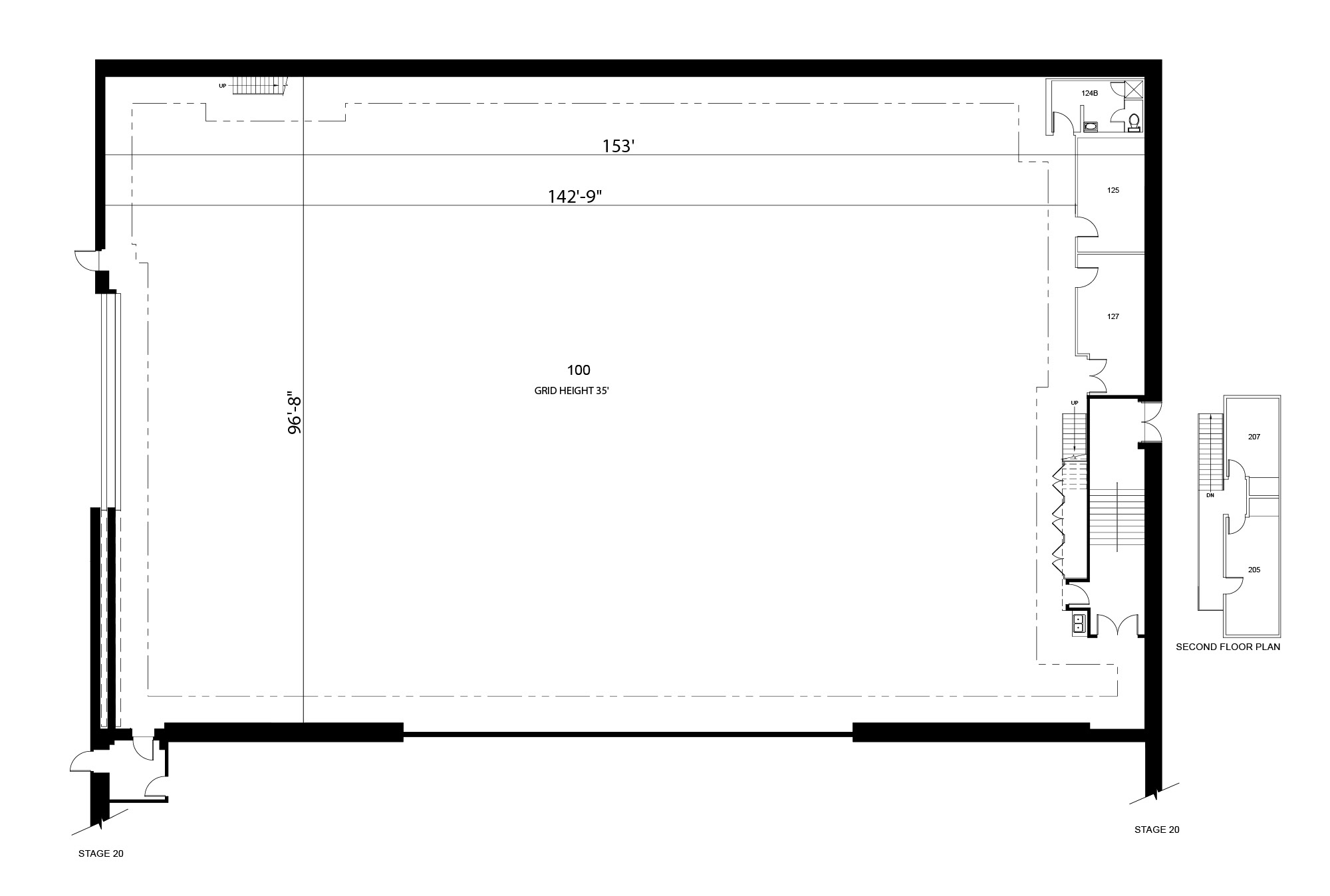

Stage 19	15,147 SQ FT	153'	99'	35'
	Floorplan	Specifications Dimensions • 153′ L x 99′ W • 15,147 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 80 Tons Special Features • Audience Rated • Gold Rooms	Downloads Stage Specs & CAD

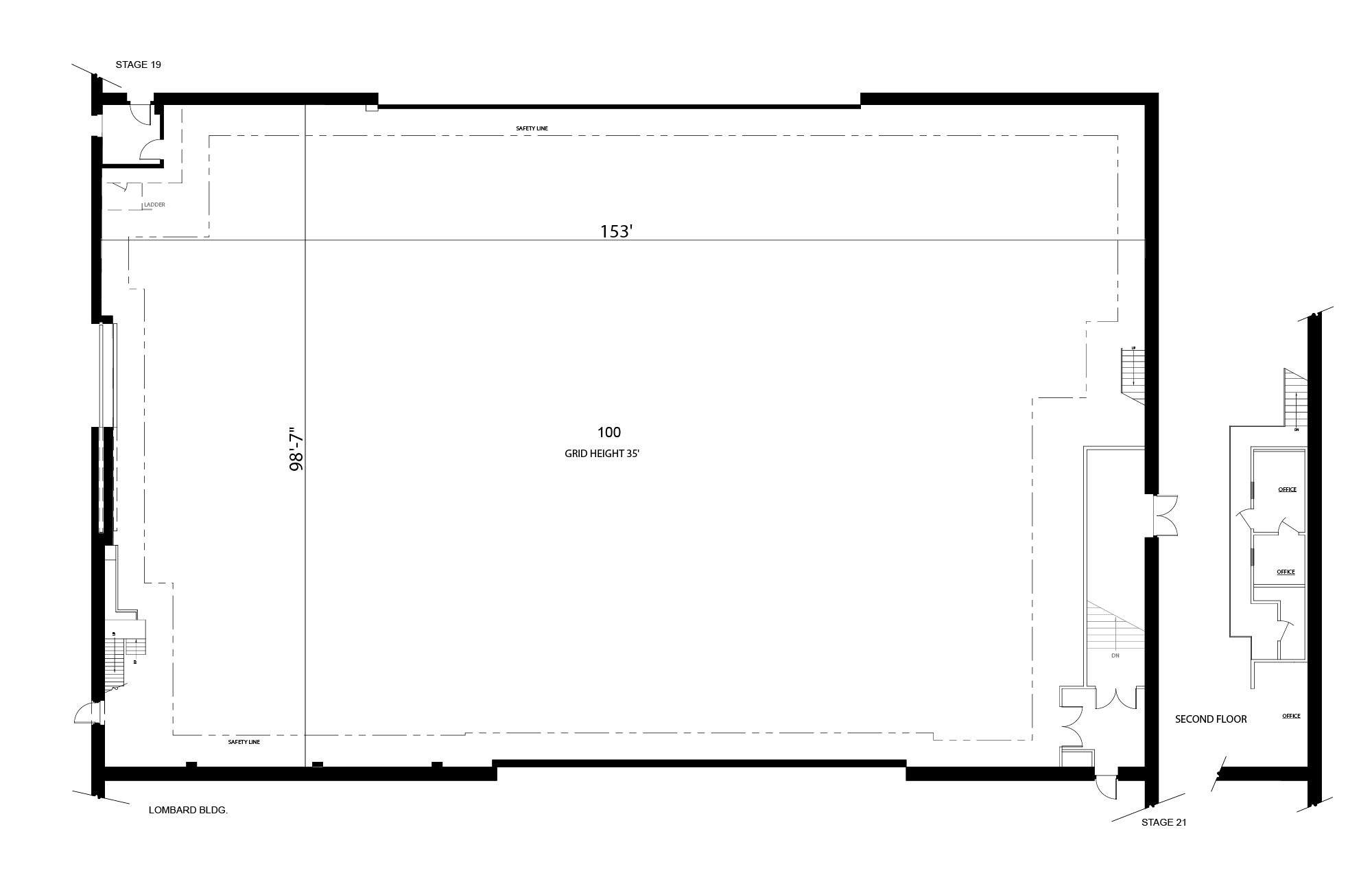

Stage 20	15,147 SQ FT	153'	99'	35'
	Floorplan	Specifications Dimensions • 153′ L x 99′ W • 15,147 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 80 Tons Special Features • Audience Rated • Gold Rooms	Downloads Stage Specs & CAD

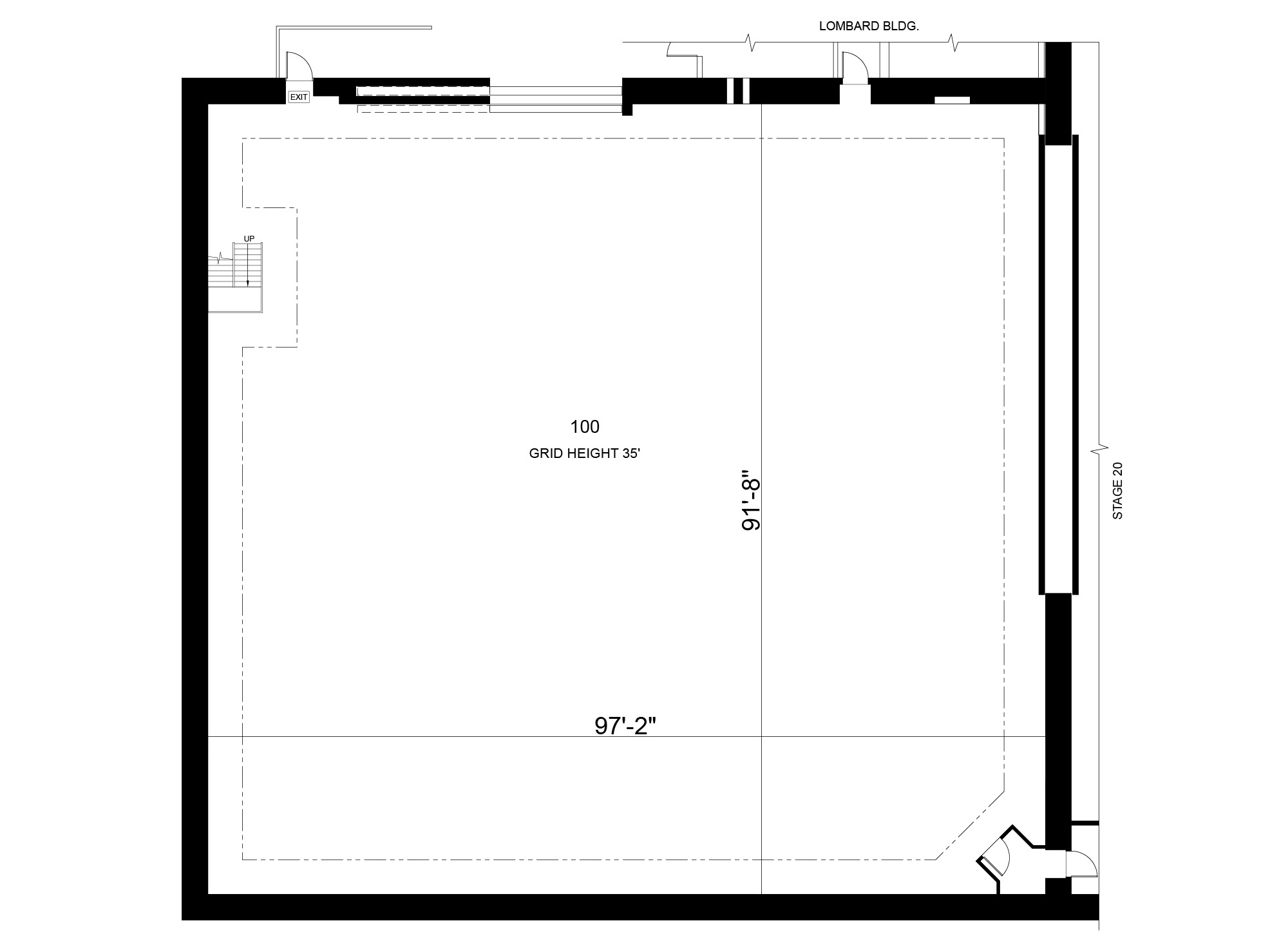

Stage 21	8,924 SQ FT	97'	92'	35'
	Floorplan	Specifications Dimensions • 97′ L x 92′ W • 8,924 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area	Power • 3,600A HVAC • 80 Tons Special Features • Audience Rated	Downloads Stage Specs & CAD

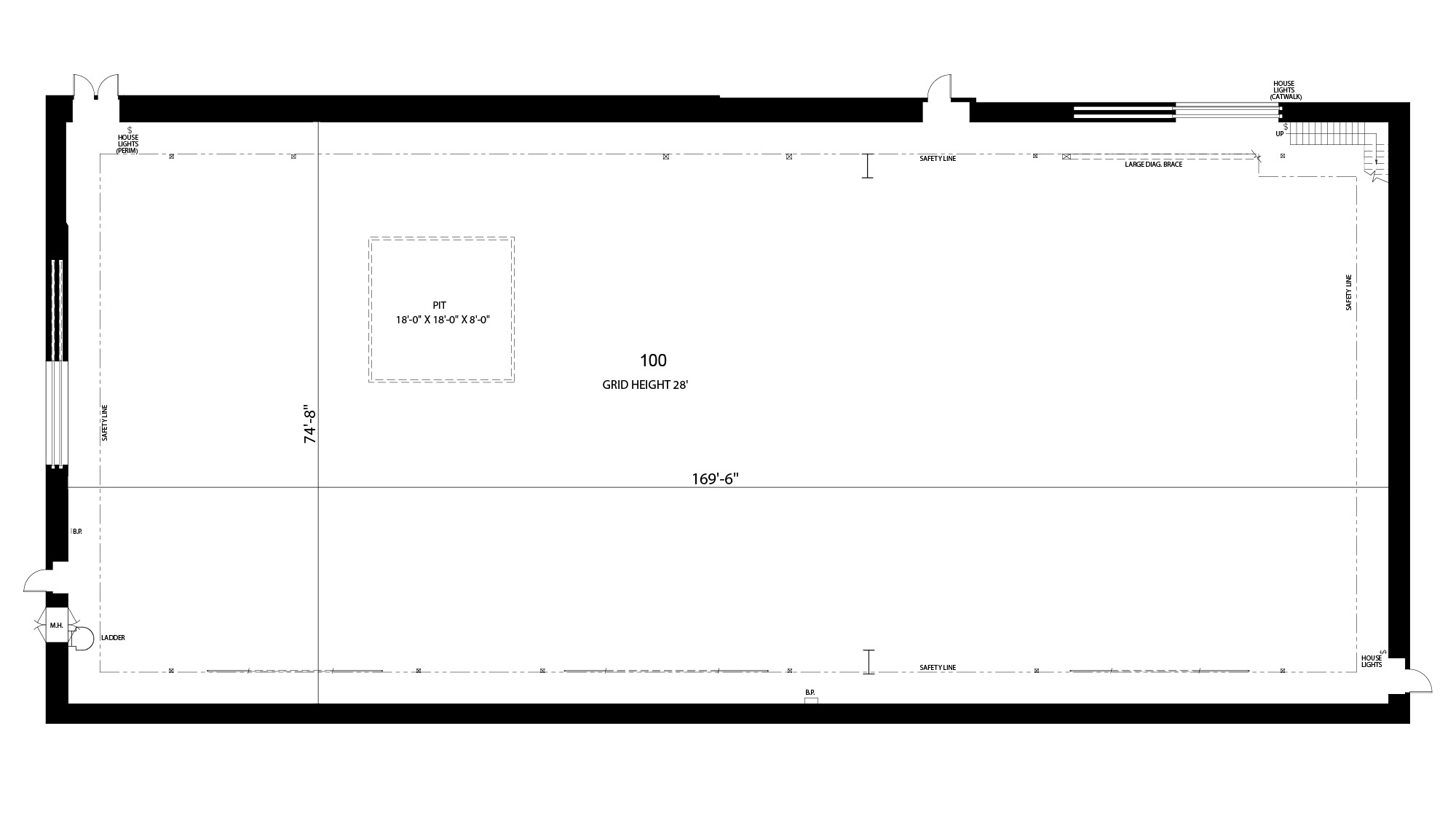

Stage 23	12,750 SQ FT	170'	75'	28'
	Floorplan	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 16'11" Door Height Floor Weight Capacity • 75 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 130 Tons Special Features • Audience Rated	Downloads Stage Specs & CAD

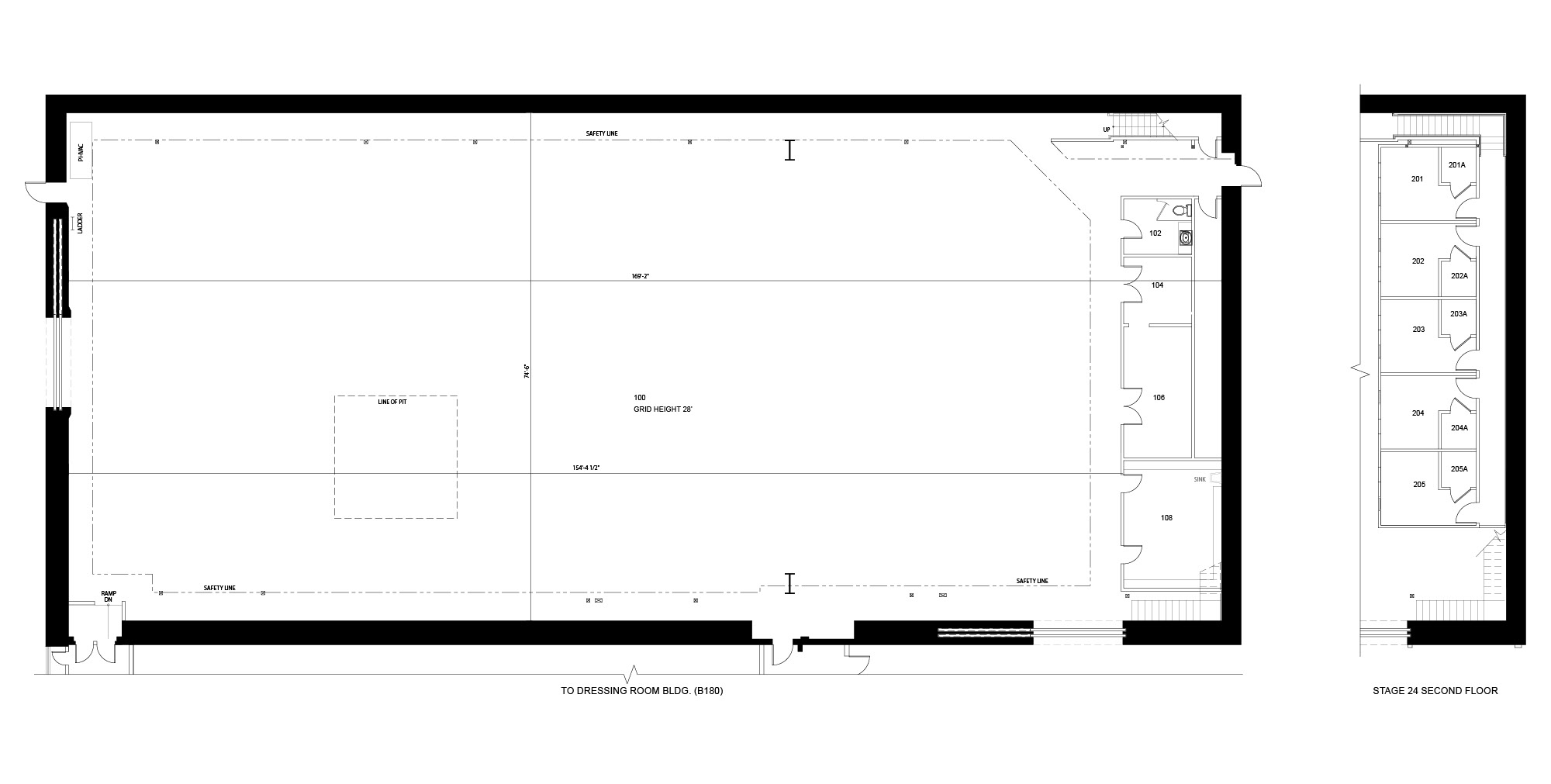

Stage 24	12,750 SQ FT	170'	75'	28'
	Floorplan	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 16'11" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 130 Tons Special Features • Audience Rated • Gold Rooms • Pit	Downloads Stage Specs & CAD

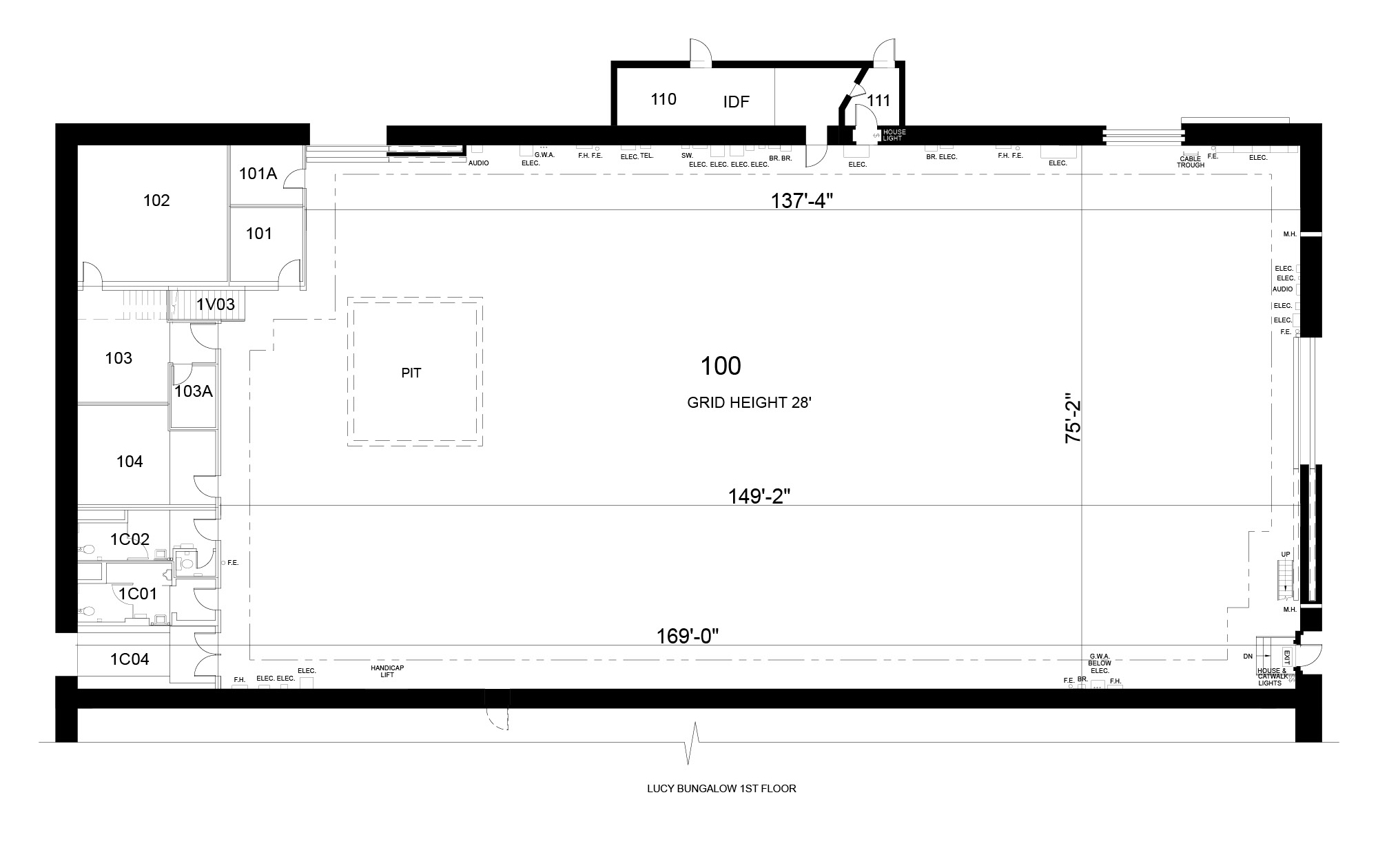

Stage 25	12,750 SQ FT	170'	75'	28'
	Floorplan	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 19'11"" Door Height Floor Weight Capacity • 50 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 70 Tons Special Features • Audience Rated • Pit	Downloads Stage Specs & CAD

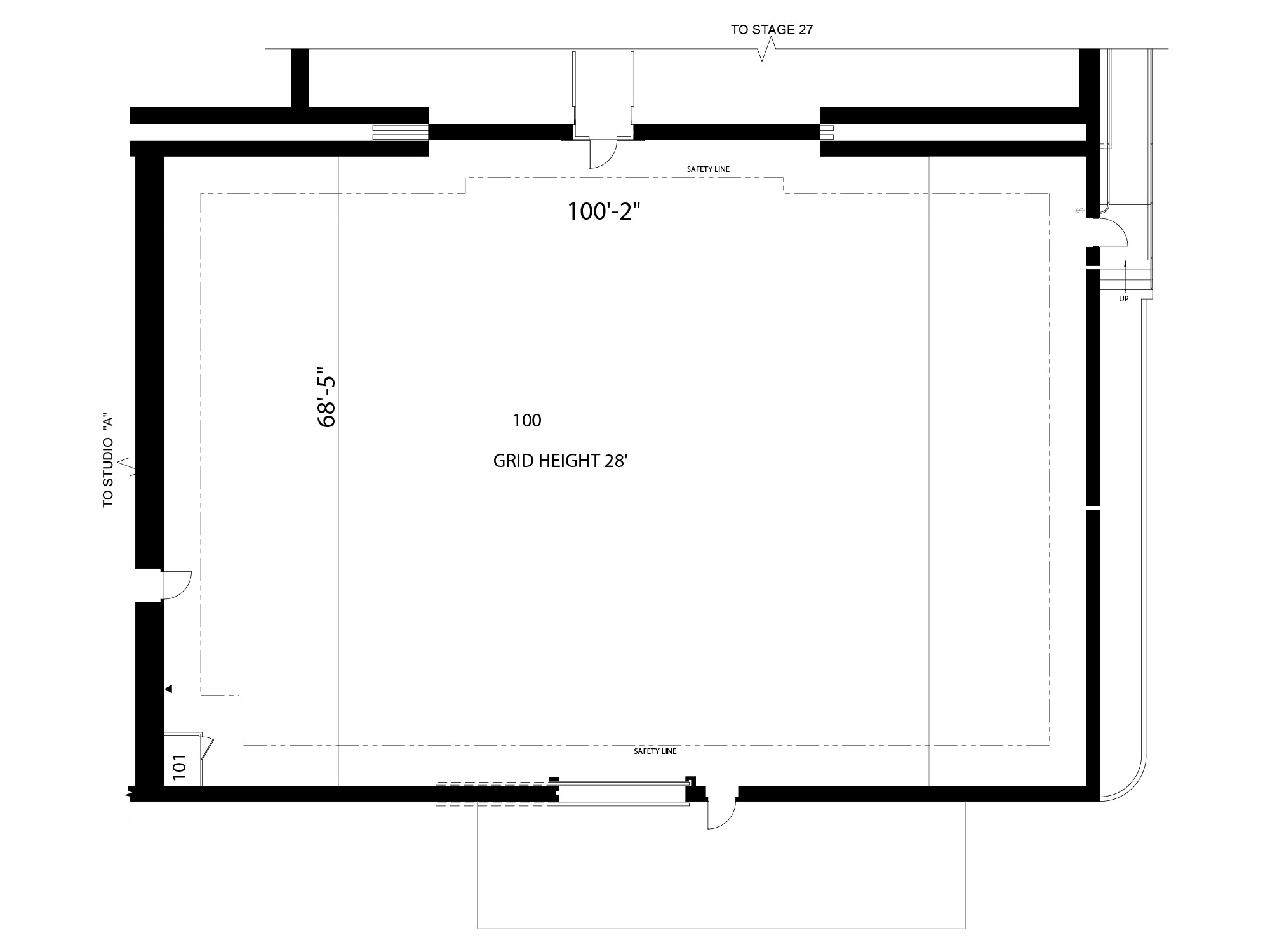

Stage 26	6,880 SQ FT	100'	68'	28'
	Floorplan	Specifications Dimensions • 100′ L x 68′ W • 6,880 Sq Ft • 28′ Grid Height • 21'6" Door Height Floor Weight Capacity • 75 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area	Power • 2,400A HVAC • 70 Tons	Downloads Stage Specs & CAD

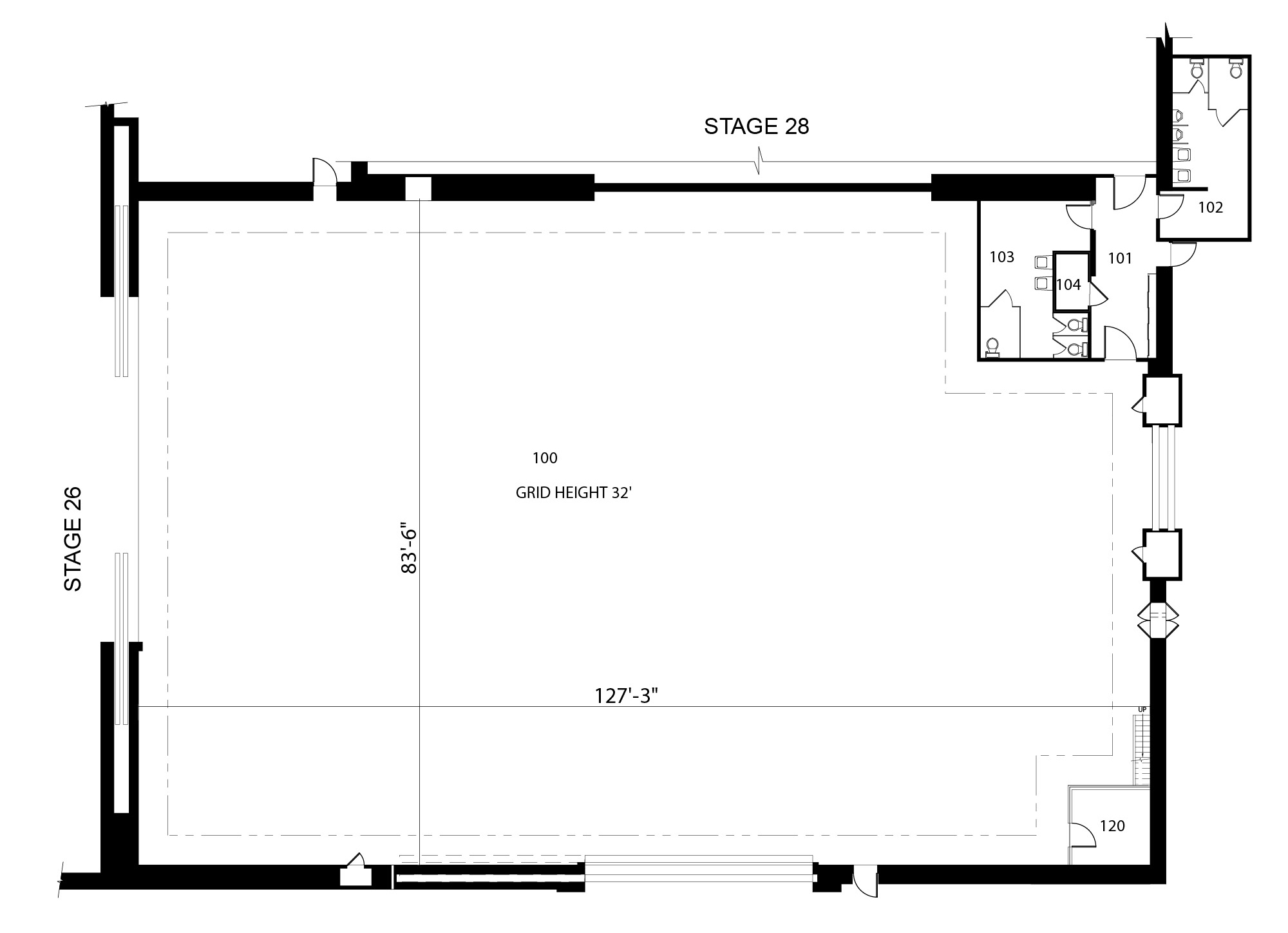

Stage 27	10,541 SQ FT	127'	83'	32'
	Floorplan	Specifications Dimensions • 127′ L x 83′ W • 10,541 Sq Ft • 32′ Grid Height • 22' Door Height Floor Weight Capacity • 110 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area	Power • 6,000A HVAC • 125 Tons	Downloads Stage Specs & CAD

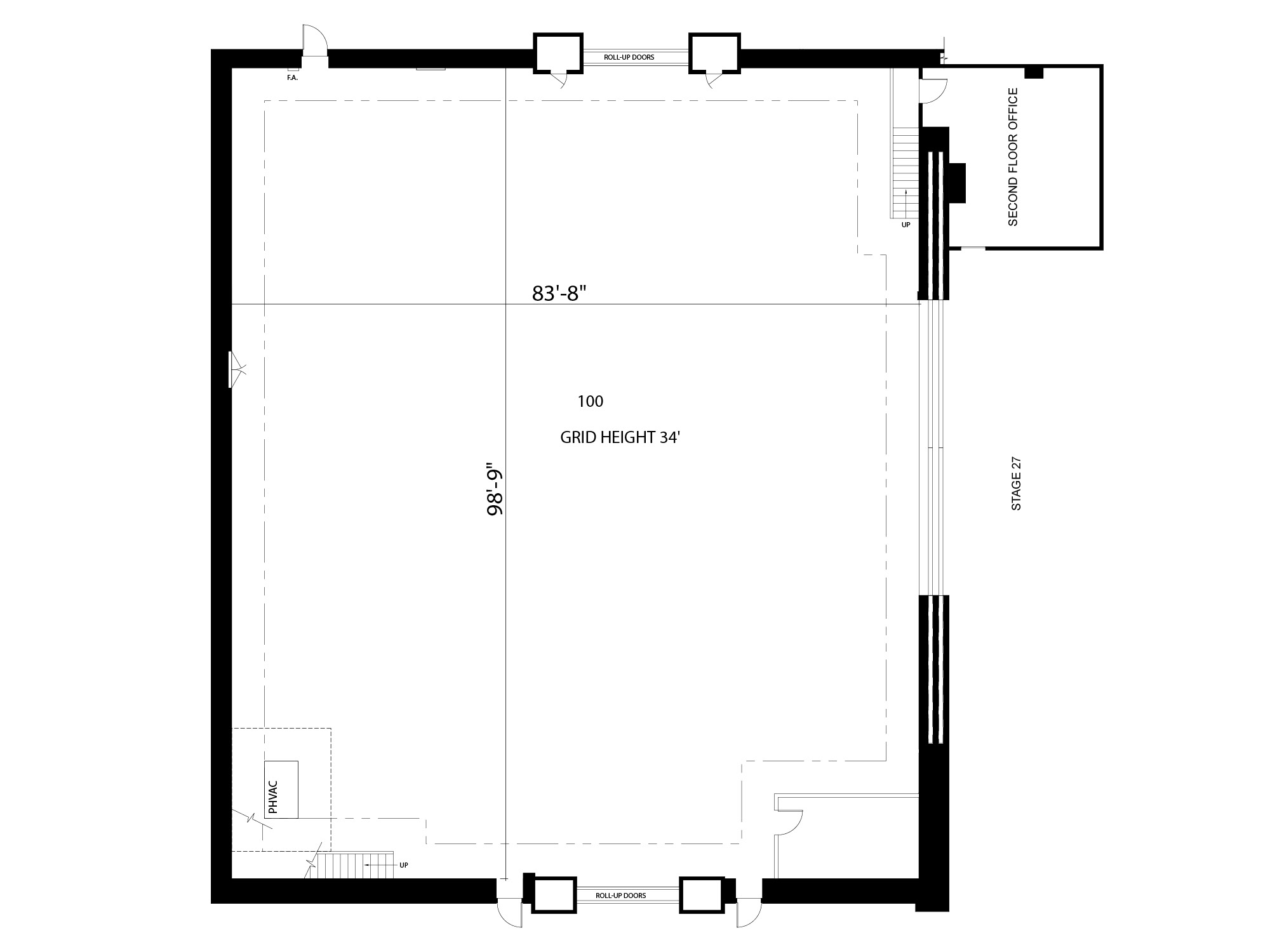

Stage 28	8,316 SQ FT	99'	84'	33'
	Floorplan	Specifications Dimensions • 99′ L x 84′ W • 8,316 Sq Ft • 33′ Grid Height • 22' Door Height Floor Weight Capacity • 110 PSF Uniform Floor Distribution • 2,500 LBS Concentrated on Min. 12″ Area	Power • 3,600A HVAC • 100 Tons	Downloads Stage Specs & CAD

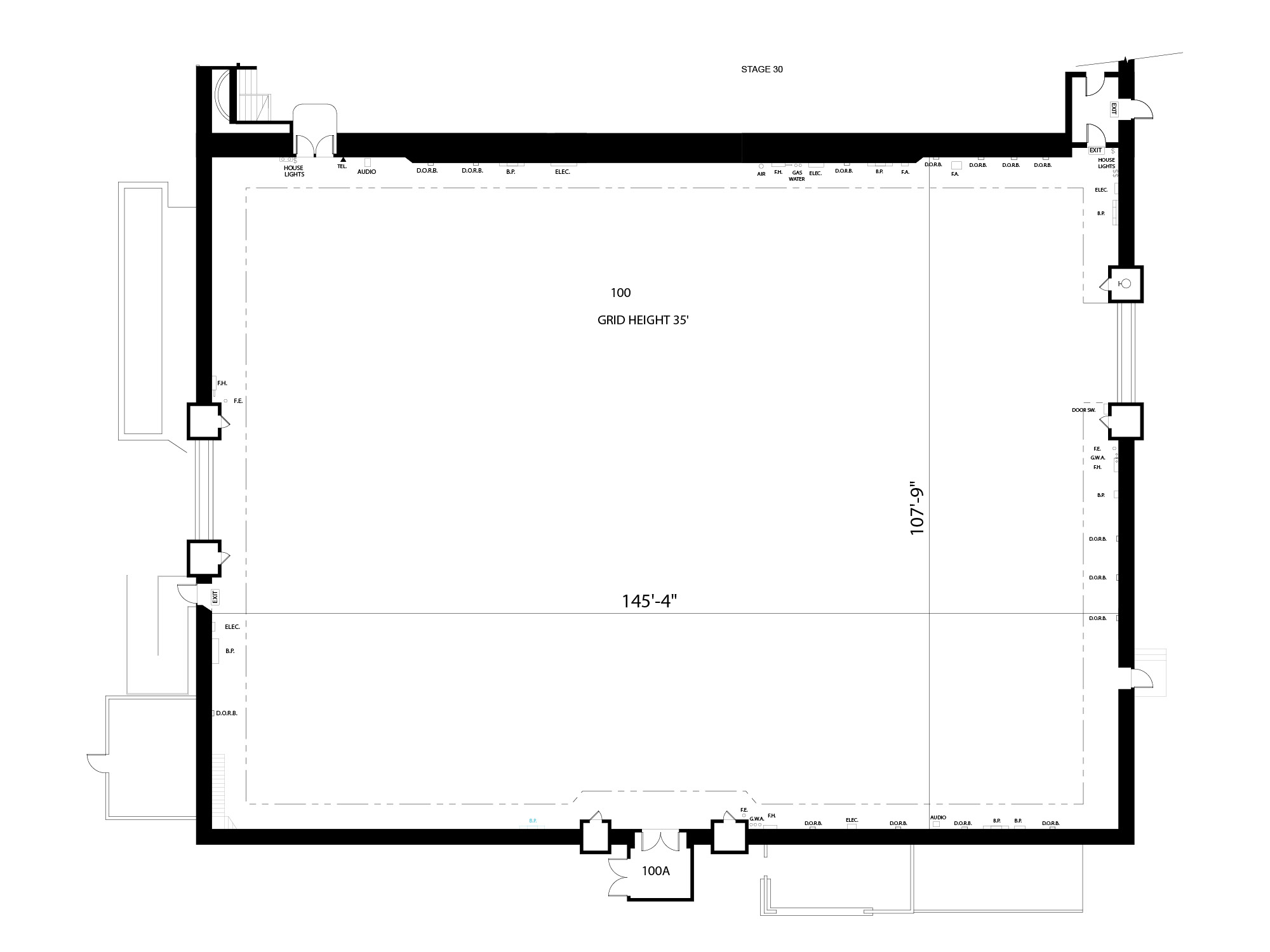

Stage 29	15,660 SQ FT	145'	108'	35'
	Floorplan	Specifications Dimensions • 145′ L x 108′ W • 15,660 Sq Ft • 35′ Grid Height • 29'3" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area	Power • 9,000A HVAC • 200 Tons Special Features • Audience Rated • Control Room • Basement	Downloads Stage Specs & CAD

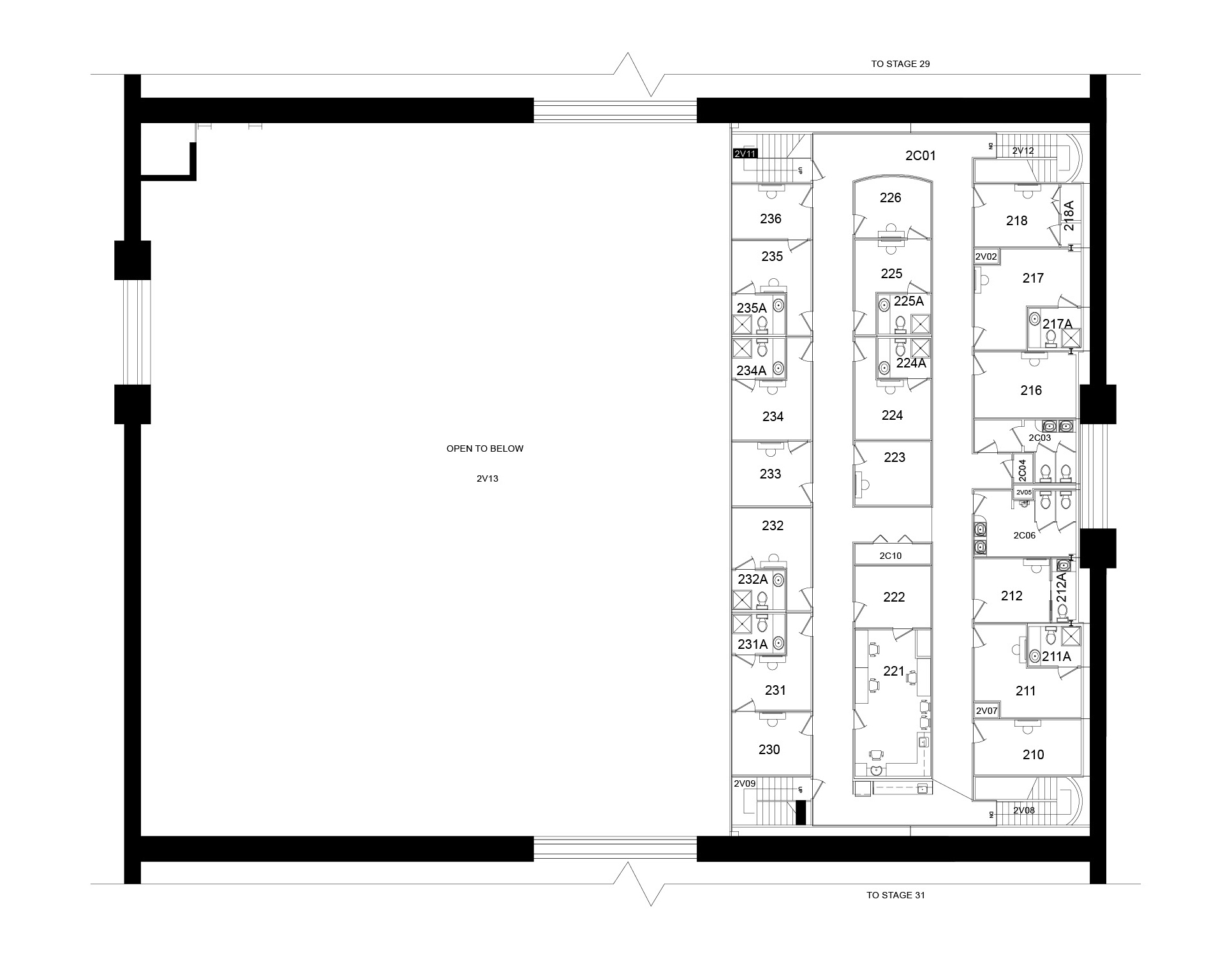

Stage 30	9,630 SQ FT	107'	90'	35'
	Floorplan	Specifications Dimensions • 107′ L x 90′ W • 9,630 Sq Ft • 35′ Grid Height • 32'10" Door Height Floor Weight Capacity • 55 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area	Power • 9,000A HVAC • 125 Tons Special Features • Audience Rated • Control Room • Dressing Rooms • Basement	Downloads Stage Specs & CAD

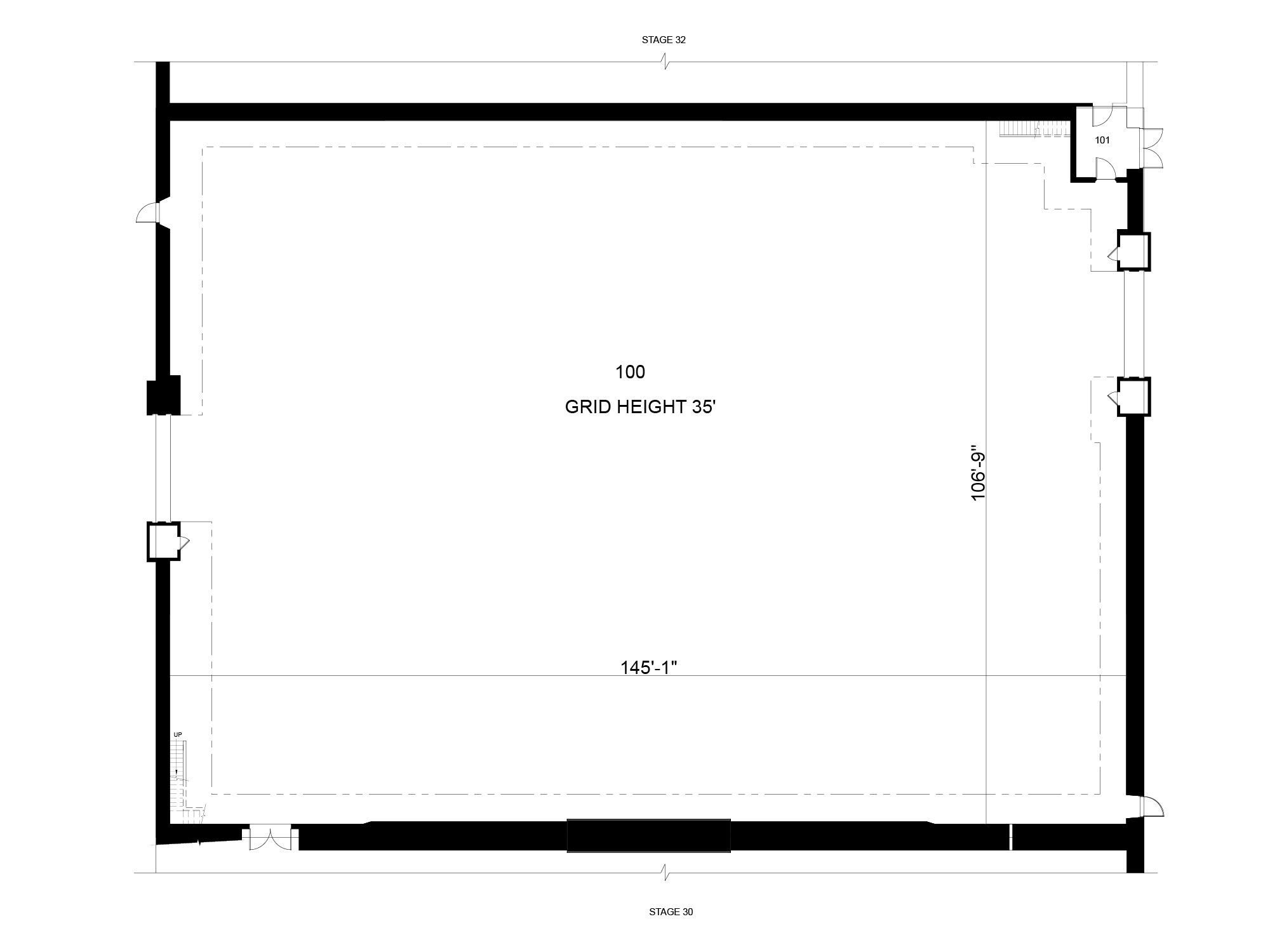

Stage 31	15,515 SQ FT	145'	107'	35'
	Floorplan	Specifications Dimensions • 145′ L x 107′ W • 15,515 Sq Ft • 35′ Grid Height • 32'10" Door Height Floor Weight Capacity • 55 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area	Power • 9,000A HVAC • 200 Tons Special Features • Audience Rated • Basement	Downloads Stage Specs & CAD

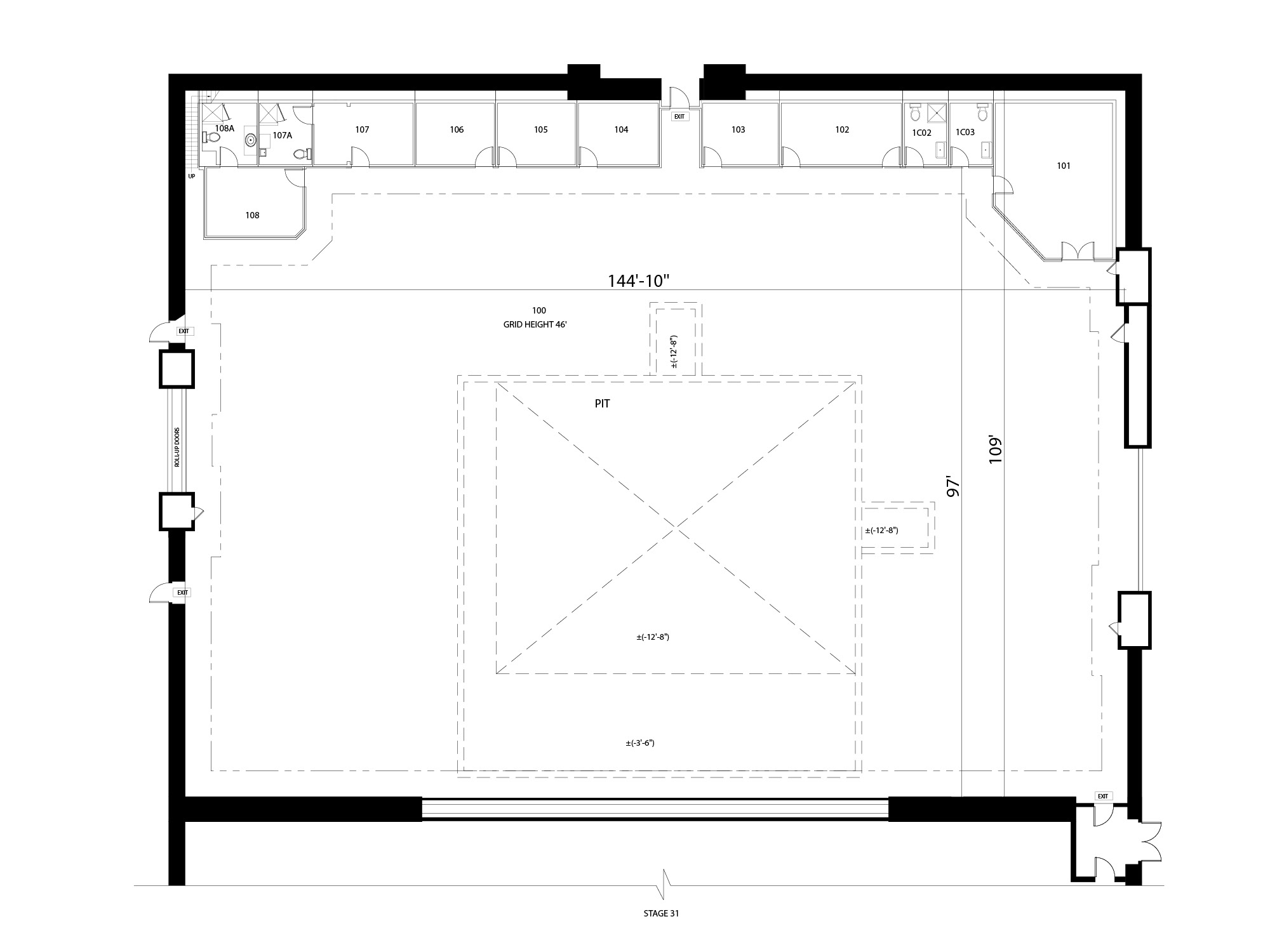

Stage 32	15,696 SQ FT	144'	109'	45'
	Floorplan	Specifications Dimensions • 144′ L x 109′ W • 15,696 Sq Ft • 45′ Grid Height • 32'10" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area	Power • 7,500A HVAC • 200 Tons Special Features • Audience Rated • Gold Rooms • Basement	Downloads Stage Specs & CAD

STAGE	AREA
Stage 1	10,568 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 146′ L x 73′ W • 10,568 Sq Ft • 26′ Grid Height • 21′ Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 3,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,200A • 100 Tons Special Features • Audience Rated • Connecting Door to Stage 2
Stage 2	8,436 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 148′ L x 57′ W • 8,436 Sq Ft • 27′ Grid Height • 19′ Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 6,000A • 80 Tons Special Features • Connecting Door to Stage 1
Stage 3	5,546 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 94′ L x 59′ W • 5,546 Sq Ft • 25′ Grid Height • 19′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,300 LBS Concentrated on Min. 12″ Area Power & HVAC • 2,400A • 60 Tons
Stage 4	13,845 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 195′ L x 71′ W • 13,845 Sq Ft • 26′ Grid Height • 26′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 4,800A • 100 Tons Special Features • 4 Pits
Stage 5	18,772 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 247′ L x 76′ W • 18,772 Sq Ft • 34′ Grid Height • 28′ Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 4,800A • 120 Tons Special Features • Basement
Stage 6	7,521 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 109′ L x 69′ W • 7,521 Sq Ft • 30′ Grid Height • 28′ Door Height Floor Weight Capacity • 45 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area Power & HVAC • 4,800A • 50 Tons Special Features • Connecting Door to Stage 7
Stage 7	11,523 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 167′ L x 69′ W • 11,523 Sq Ft • 30′/65' Grid Height • 20' & 28′10" Door Height Floor Weight Capacity • 50 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,200A • 50 Tons Special Features • Connecting Door to Stage 6
Stage 8	16,611 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 147′ L x 113′ W • 16,611 Sq Ft • 30′ Grid Height • 26′10" Door Height Floor Weight Capacity • 175 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 200 Tons Special Features • 2 Pits
Stage 9	16,611 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 147′ L x 113′ W • 16,611 Sq Ft • 30′ Grid Height • 26′10" Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 200 Tons Special Features • 1 Pit
Stage 11	6,080 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 95′ L x 64′ W • 6,080 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area Power & HVAC • 2,400A • 85 Tons Special Features • Connecting Door to Stage 14
Stage 12	6,080 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 95′ L x 64′ W • 6,080 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 175 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area Power & HVAC • 2,400A • 85 Tons Special Features • Connecting Door to Stage 14
Stage 14	17,328 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 217′ L x 95'/64′ W • 17,328 Sq Ft • 38′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area Power & HVAC • 9,600A • 250 Tons Special Features • Connecting Doors to Stages 11,12,15
Stage 15	18,040 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 164′ L x 110′ W • 17,328 Sq Ft • 56′ Grid Height • 43' Door Height Floor Weight Capacity • 350 PSF Uniform Floor Distribution • 3,000 LBS Concentrated on Min. 12″ Area Power • 7,500A • 250 Tons Special Features • Connecting Doors to Stage 14 • Gold Rooms • Water Tank
Stage 16	17,850 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 170′ L x 105′ W • 17,328 Sq Ft • 40′ Grid Height • 28' Door Height Floor Weight Capacity • 325 PSF Uniform Floor Distribution • 2,400 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 80 Tons Special Features • Sloping Pit (5' to 12')
Stage 17	12,648 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 186′ L x 68′ W • 12,648 Sq Ft • 35′ Grid Height • 28' Door Height Floor Weight Capacity • 250 PSF Uniform Floor Distribution • 2,500 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,200A • 170 Tons Special Features • Pit
Stage 18	18,315 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 185′ L x 99′ W • 18,315 Sq Ft • 40′ Grid Height • 28' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 2,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 9,600A • 270 Tons Special Features • Audience Rated • Basement
Stage 19	15,147 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 153′ L x 99′ W • 15,147 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 80 Tons Special Features • Audience Rated • Gold Rooms
Stage 20	15,147 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 153′ L x 99′ W • 15,147 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 80 Tons Special Features • Audience Rated • Gold Rooms
Stage 21	8,924 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 97′ L x 92′ W • 8,924 Sq Ft • 35′ Grid Height • 33' Door Height Floor Weight Capacity • 125 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area Power & HVAC • 3,600A • 80 Tons Special Features • Audience Rated
Stage 23	12,750 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 16'11" Door Height Floor Weight Capacity • 75 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 130 Tons Special Features • Audience Rated
Stage 24	12,750 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 16'11" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 130 Tons Special Features • Audience Rated • Gold Rooms • Pit
Stage 25	12,750 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 170′ L x 75′ W • 12,750 Sq Ft • 28′ Grid Height • 19'11"" Door Height Floor Weight Capacity • 50 PSF Uniform Floor Distribution • 1,000 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 70 Tons Special Features • Audience Rated • Pit
Stage 26	6,880 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 100′ L x 68′ W • 6,880 Sq Ft • 28′ Grid Height • 21'6" Door Height Floor Weight Capacity • 75 PSF Uniform Floor Distribution • 1,800 LBS Concentrated on Min. 12″ Area Power & HVAC • 2,400A • 70 Tons
Stage 27	10,541 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 127′ L x 83′ W • 10,541 Sq Ft • 32′ Grid Height • 22' Door Height Floor Weight Capacity • 110 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area Power & HVAC • 6,000A • 125 Tons
Stage 28	8,316 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 99′ L x 84′ W • 8,316 Sq Ft • 33′ Grid Height • 22' Door Height Floor Weight Capacity • 110 PSF Uniform Floor Distribution • 2,500 LBS Concentrated on Min. 12″ Area Power & HVAC • 3,600A • 100 Tons
Stage 29	15,660 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 145′ L x 108′ W • 15,660 Sq Ft • 35′ Grid Height • 29'3" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area Power & HVAC • 9,000A • 200 Tons Special Features • Audience Rated • Control Room • Basement
Stage 30	9,630 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 107′ L x 90′ W • 9,630 Sq Ft • 35′ Grid Height • 32'10" Door Height Floor Weight Capacity • 55 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area Power & HVAC • 9,000A • 125 Tons Special Features • Audience Rated • Control Room • Dressing Rooms • Basement
Stage 31	15,515 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 145′ L x 107′ W • 15,515 Sq Ft • 35′ Grid Height • 32'10" Door Height Floor Weight Capacity • 55 PSF Uniform Floor Distribution • 1,100 LBS Concentrated on Min. 12″ Area Power • 9,000A • 200 Tons Special Features • Audience Rated • Basement
Stage 32	15,696 SQ FT
Floorplan Downloads Stage Specs & CAD	Specifications Dimensions • 144′ L x 109′ W • 15,696 Sq Ft • 45′ Grid Height • 32'10" Door Height Floor Weight Capacity • 100 PSF Uniform Floor Distribution • 1,200 LBS Concentrated on Min. 12″ Area Power & HVAC • 7,500A • 200 Tons Special Features • Audience Rated • Gold Rooms • Basement

Should facility and/or event clients need scanned version or digital twins of licensed facilities, Preevue Limited is a Paramount- authorized vendor for this purposes. Scans are limited to those approved by Paramount.
